DESCRIPTION

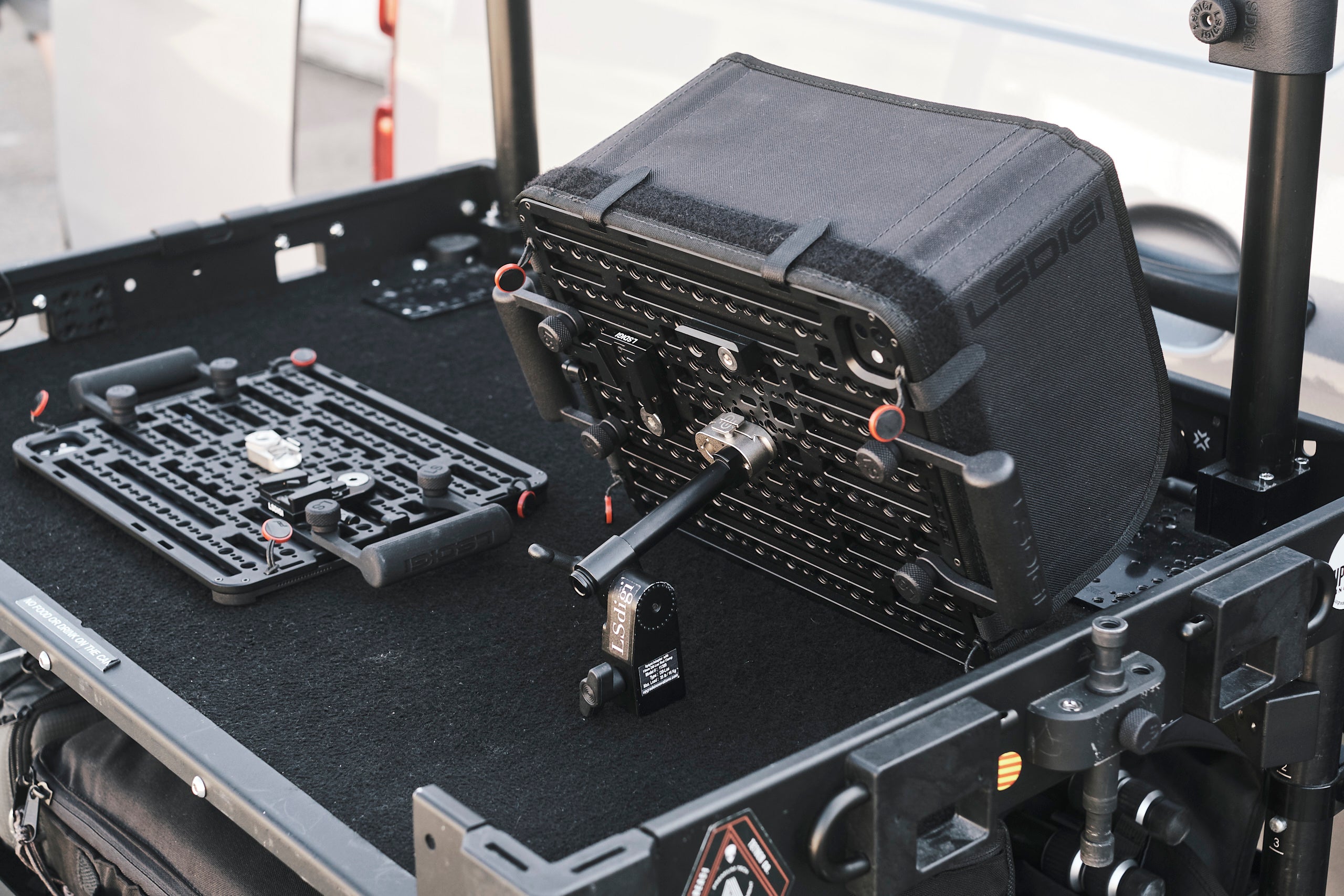

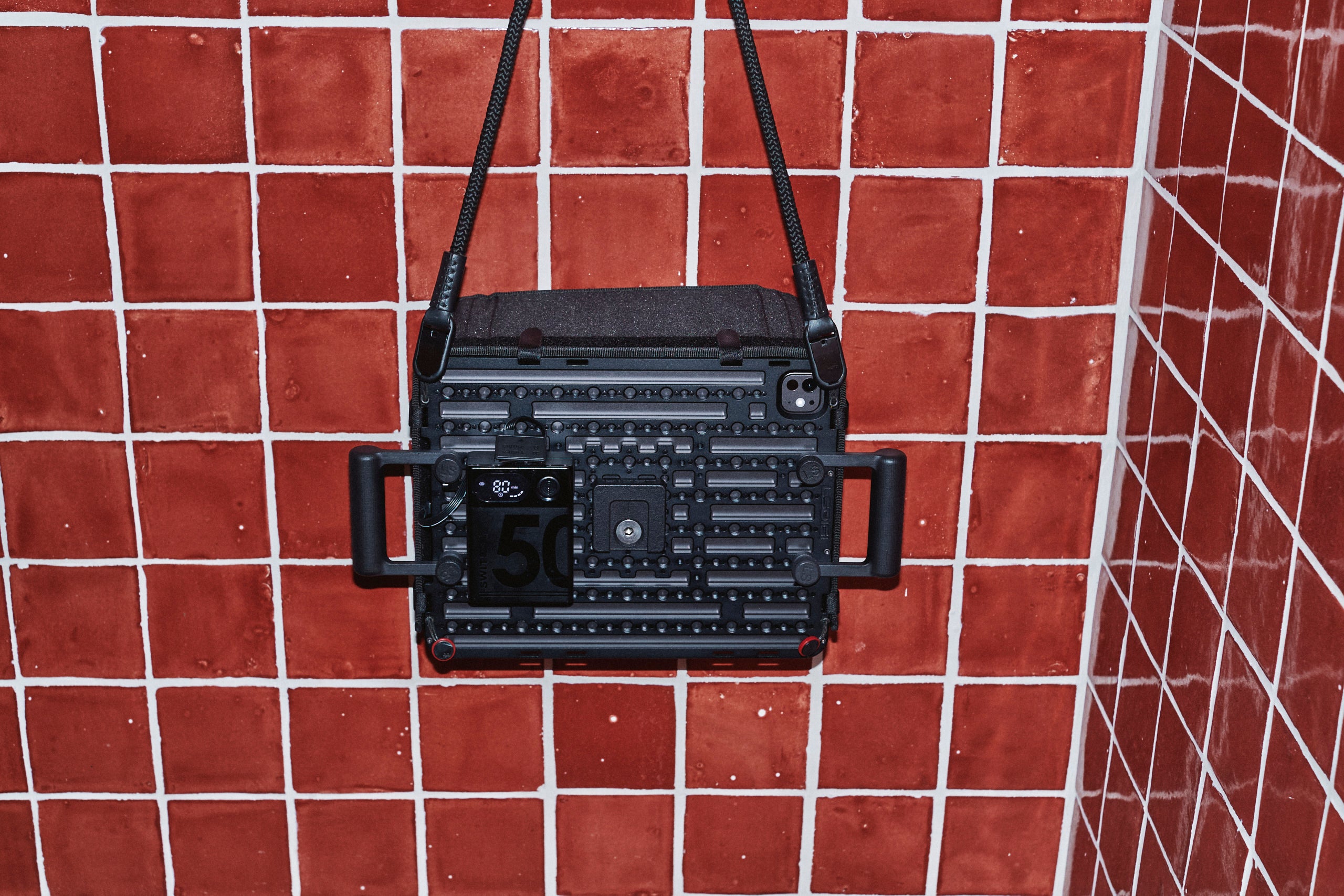

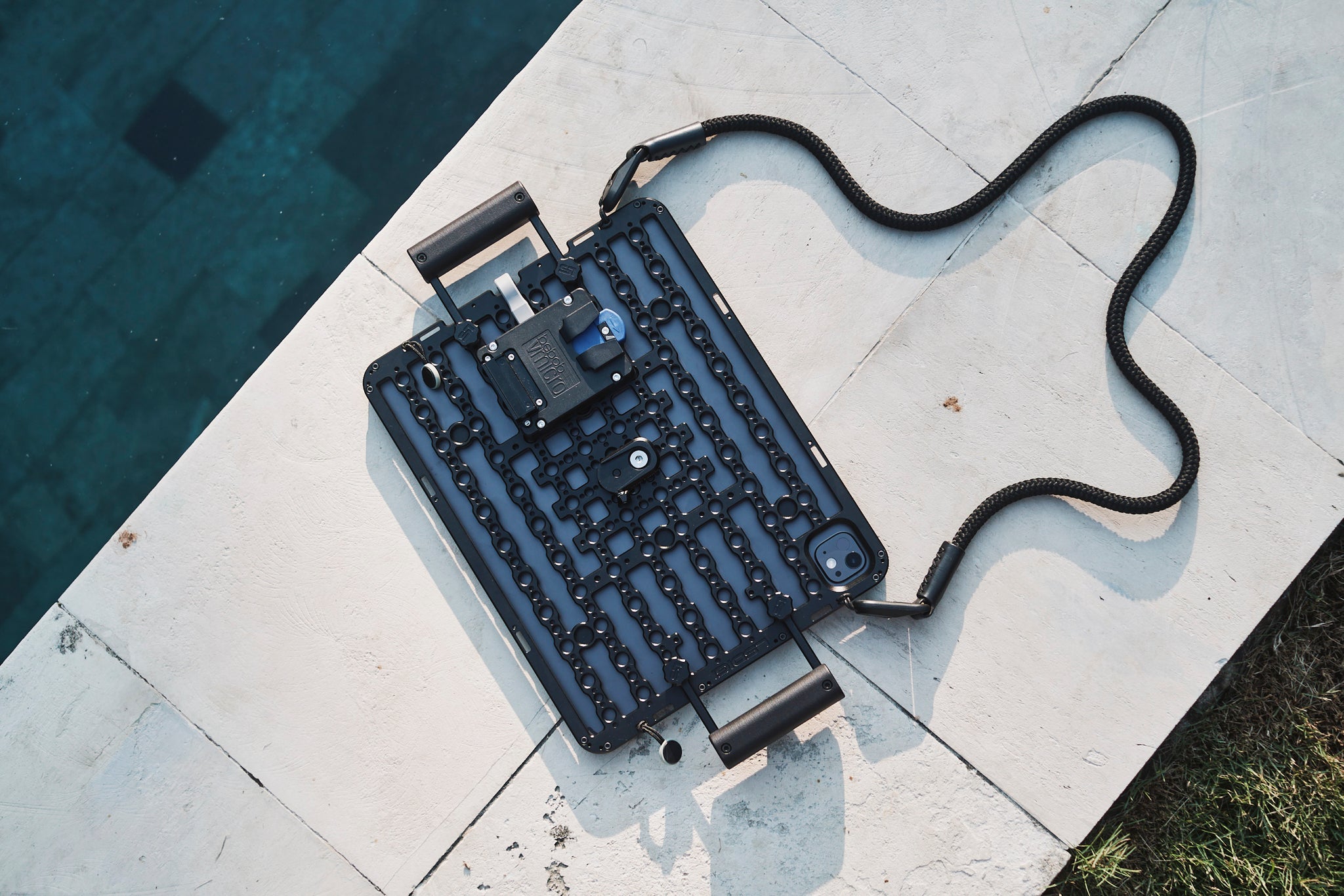

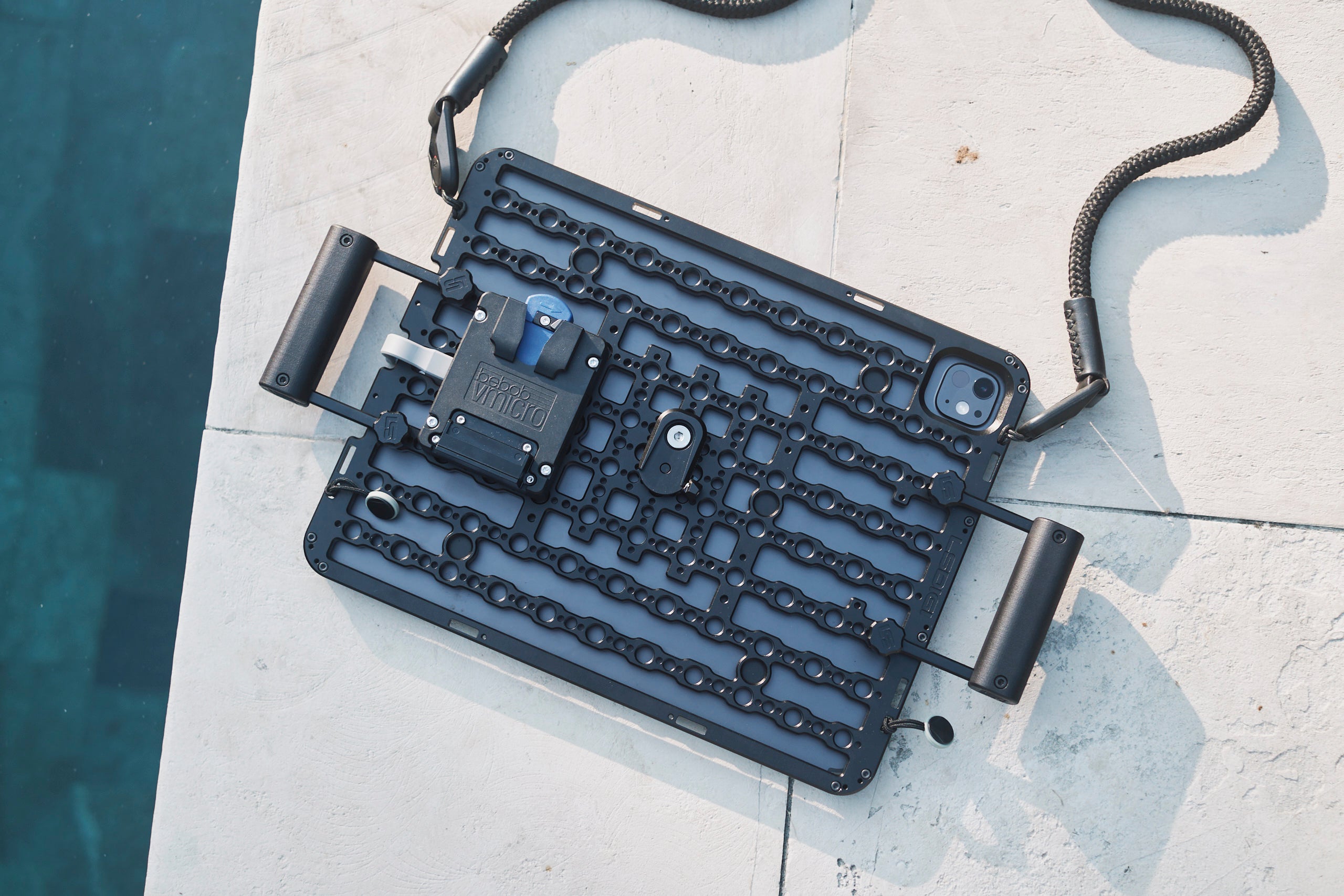

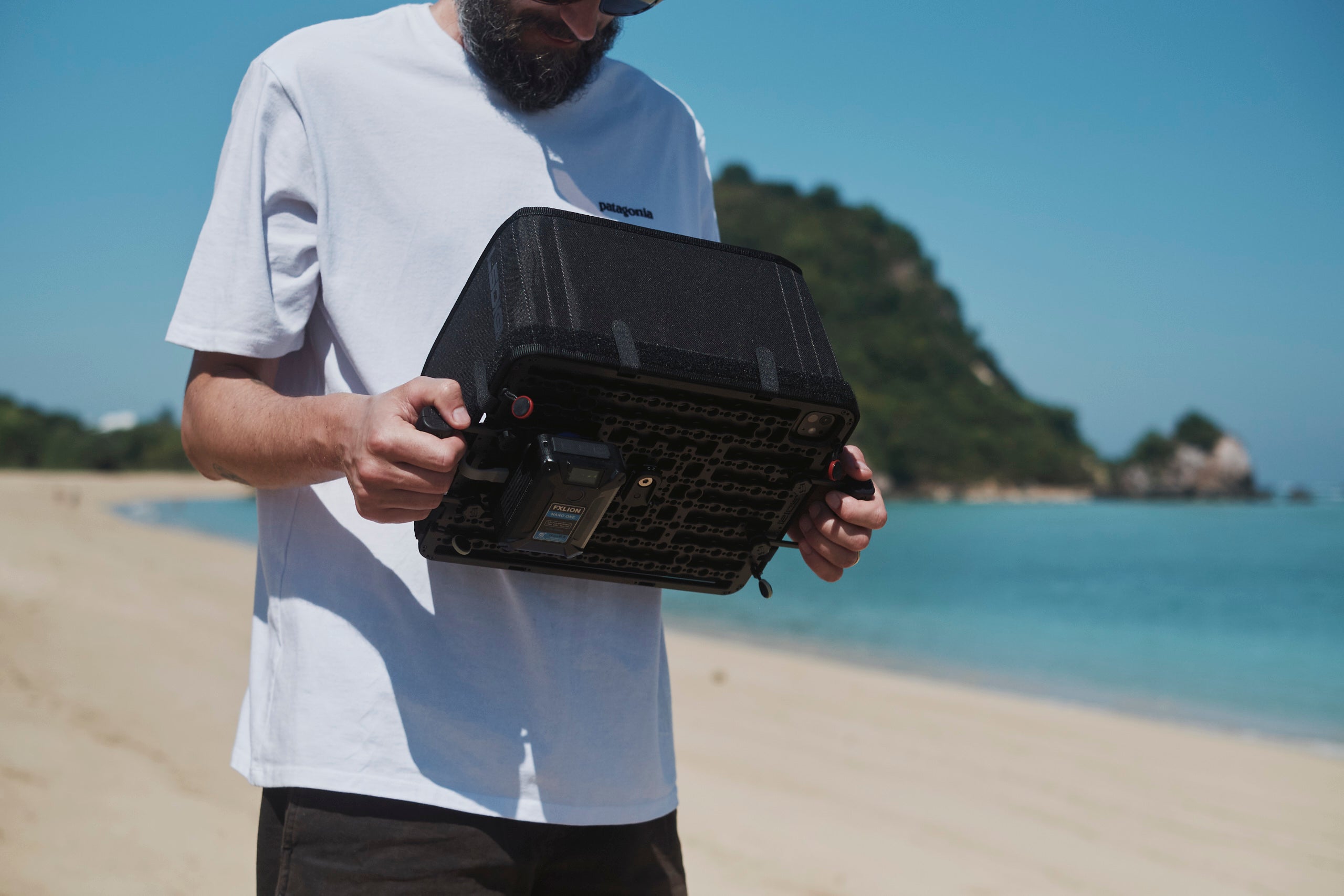

Introducing the LSdigi iPad Pro Cheeseplate System. Designed with ultimate modularity, wide compatibility and weight saving in mind.
The iPad Pro has become a workhorse for professional photo and video productions and is commonly used for monitoring images (for example through Capture Studio iPad app, Hollyland app, or Teradek Vuer app for motion productions) as well as directly shooting into with the Capture One mobile app.

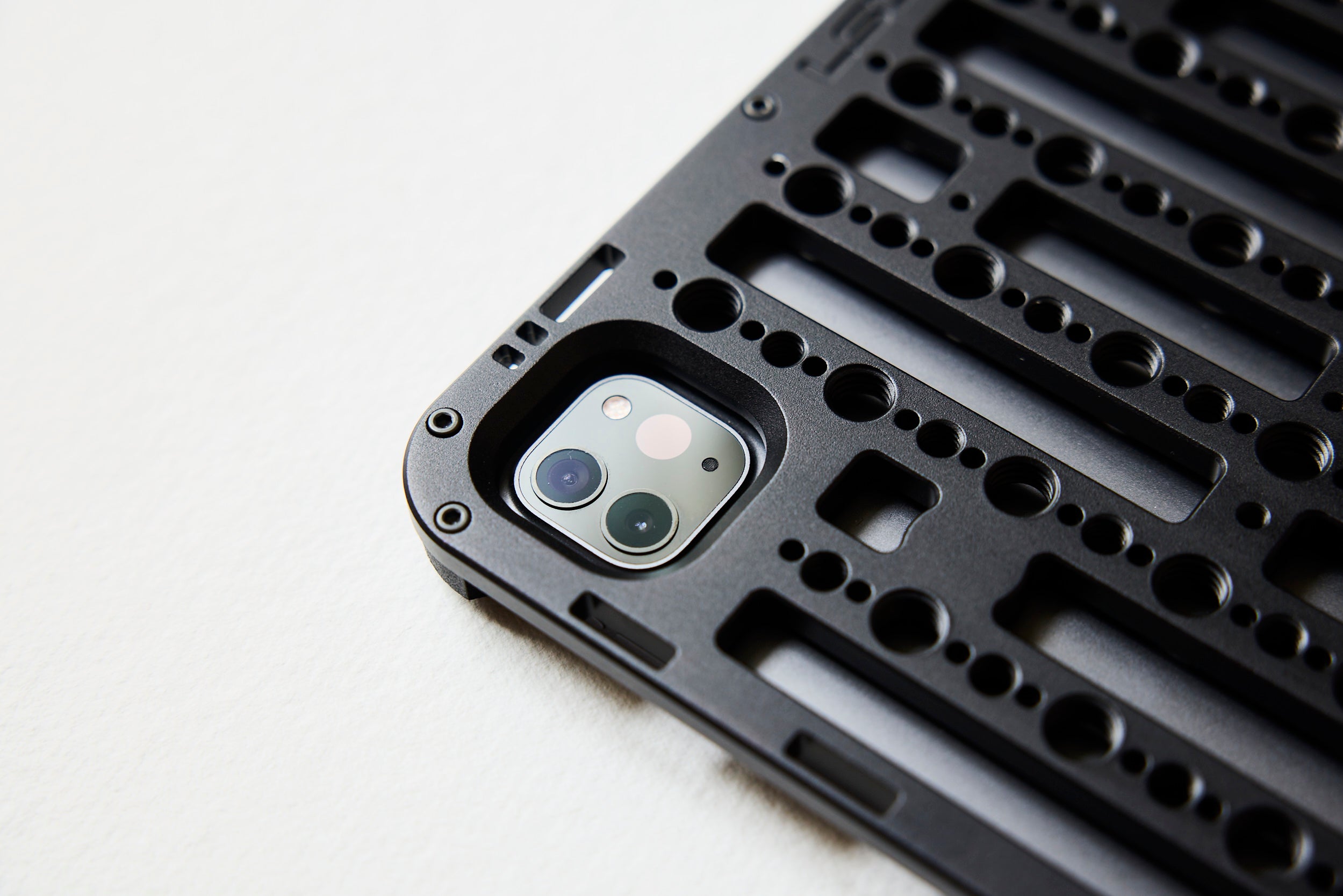

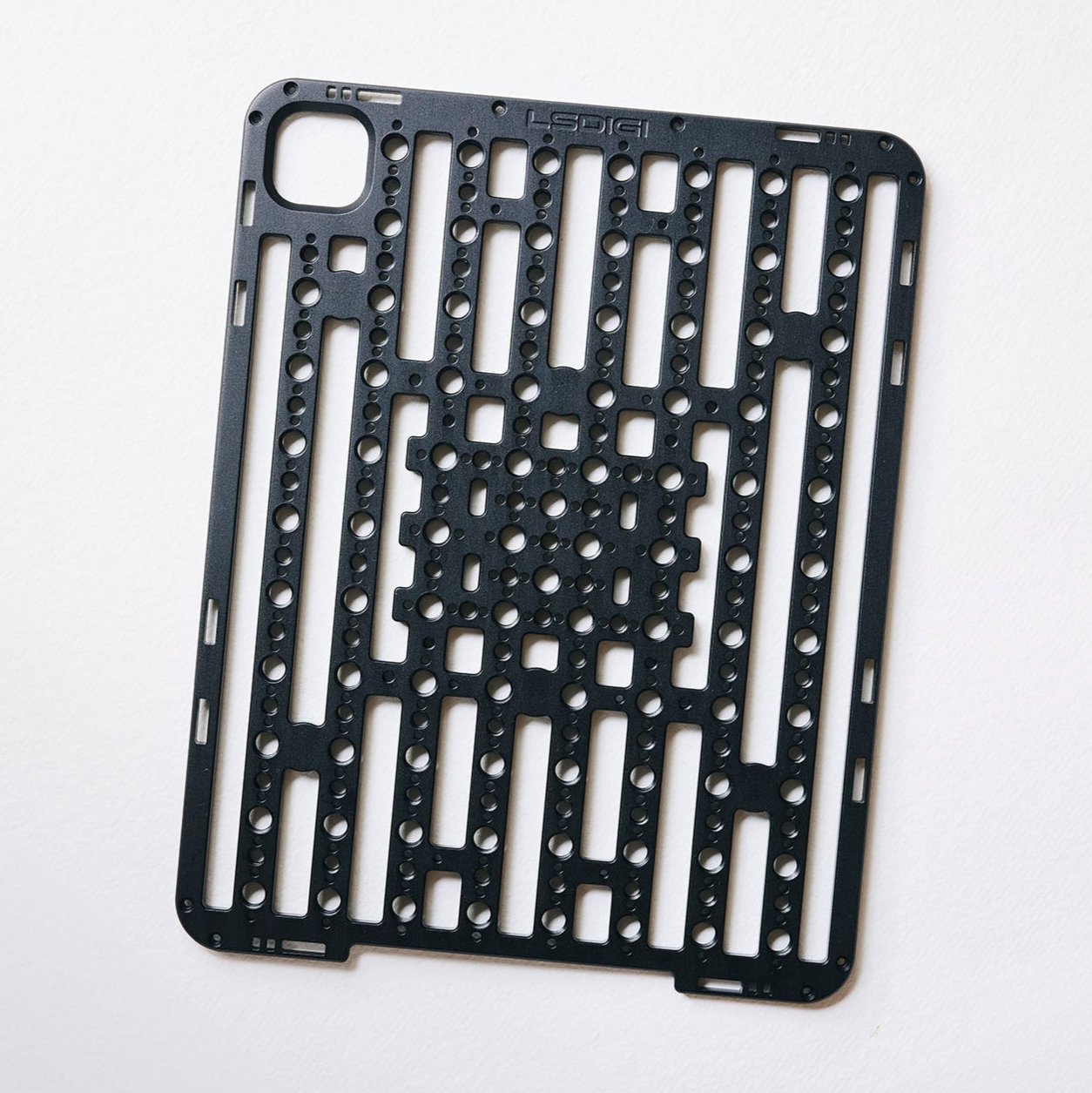

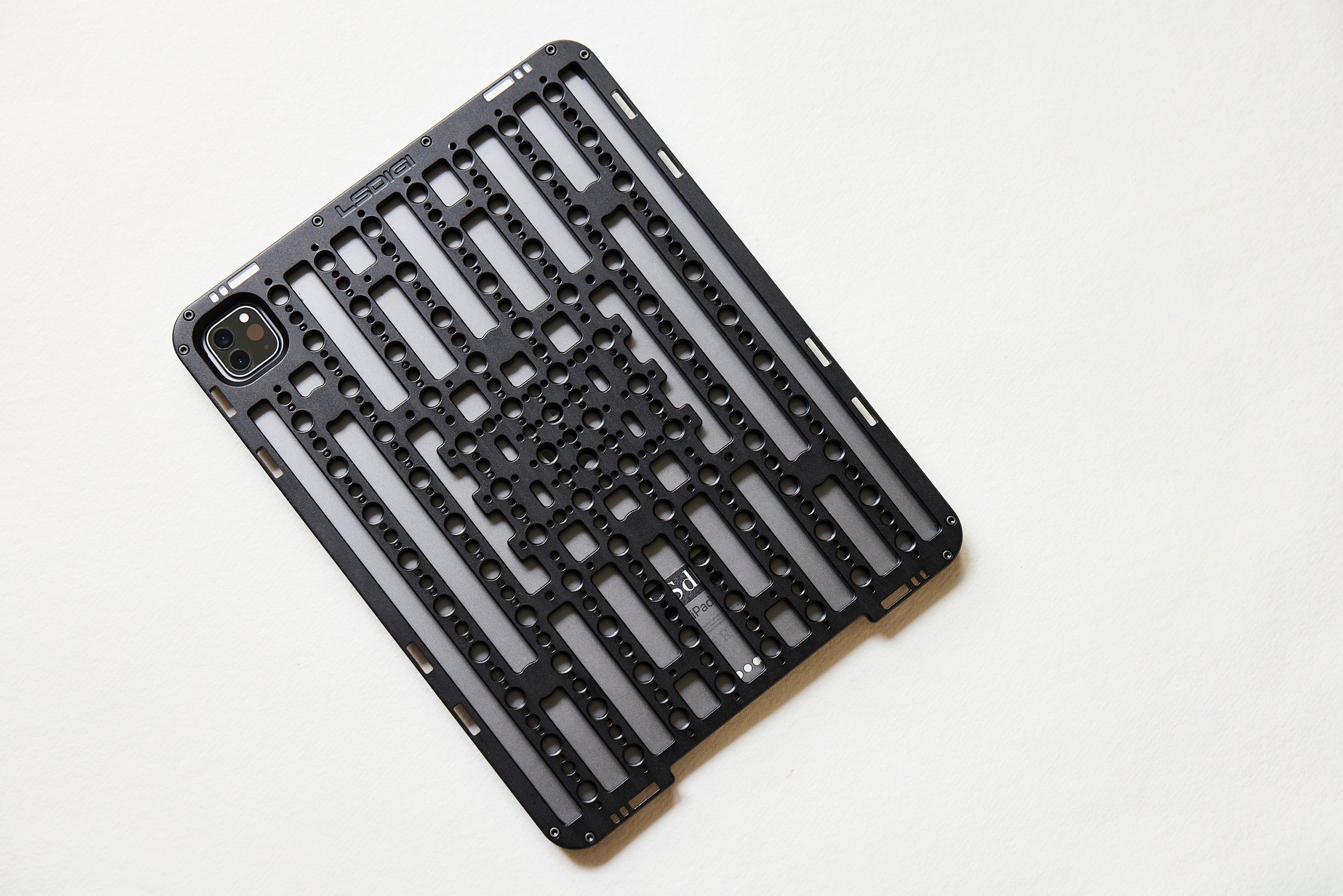

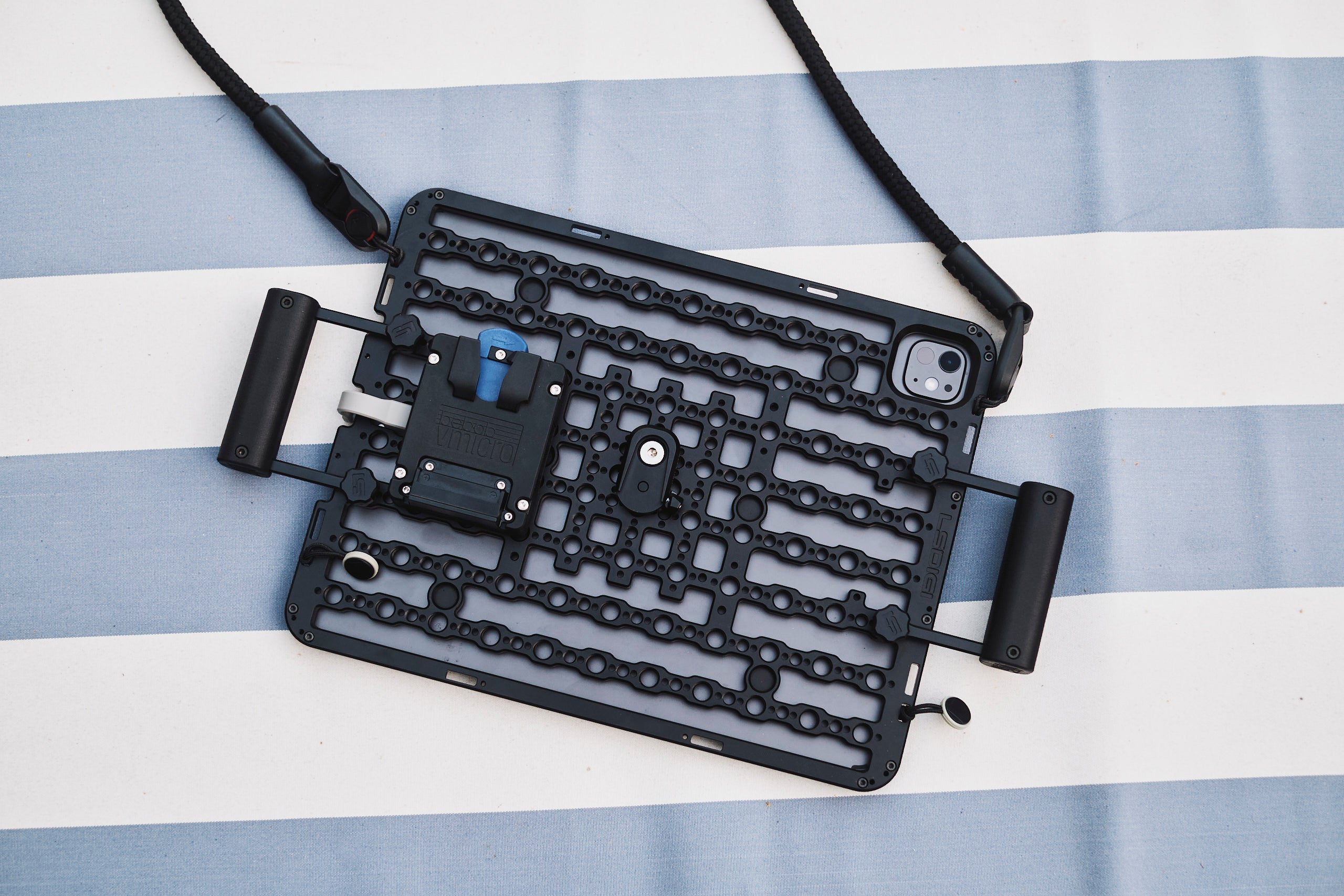

The cheeseplate has the industry standard 3/8-16 and 1/4-20 thread patterns, 100x100 and 75x75 VESA threads and additional Arri Anti-Twist locating holes for ultimate mounting possibilities. The standardised thread patterns and 0.25" plate thickness means it's backward compatible with every accessory made for the Inovativ Digiplate systems.
The iPad system is compatible with 3rd, 4th, 5th, 6th & the latest 7th generation Apple iPad Pro 12.9" / 13" Models using corner mounting clamps designed with super tight tolerances meaning the corner clamps are non-adjustable for an exact and secure fit.
Future iPad generations will be supported - likely to fit the same 7th Gen corner brackets for several more iPad Pro updates, and when / if the size is changed - new corner brackets will be released by LSdigi.
Designed by Laimonas - the CNC plates are manufactured in the EU, 3D Printed parts in London, threaded inserts for corner clamps are heat-pressed in-house and the Cordura Sun Hoods are expertly crafted by Duncan at GAS Textiles (London).
SPECIAL FEATURES
- Lightweight design (569g)
- 3/8-16 & 1/4-20 threads with standard 1" spacing
- 75x75 and 100x100 VESA threads to fit any monitor mount

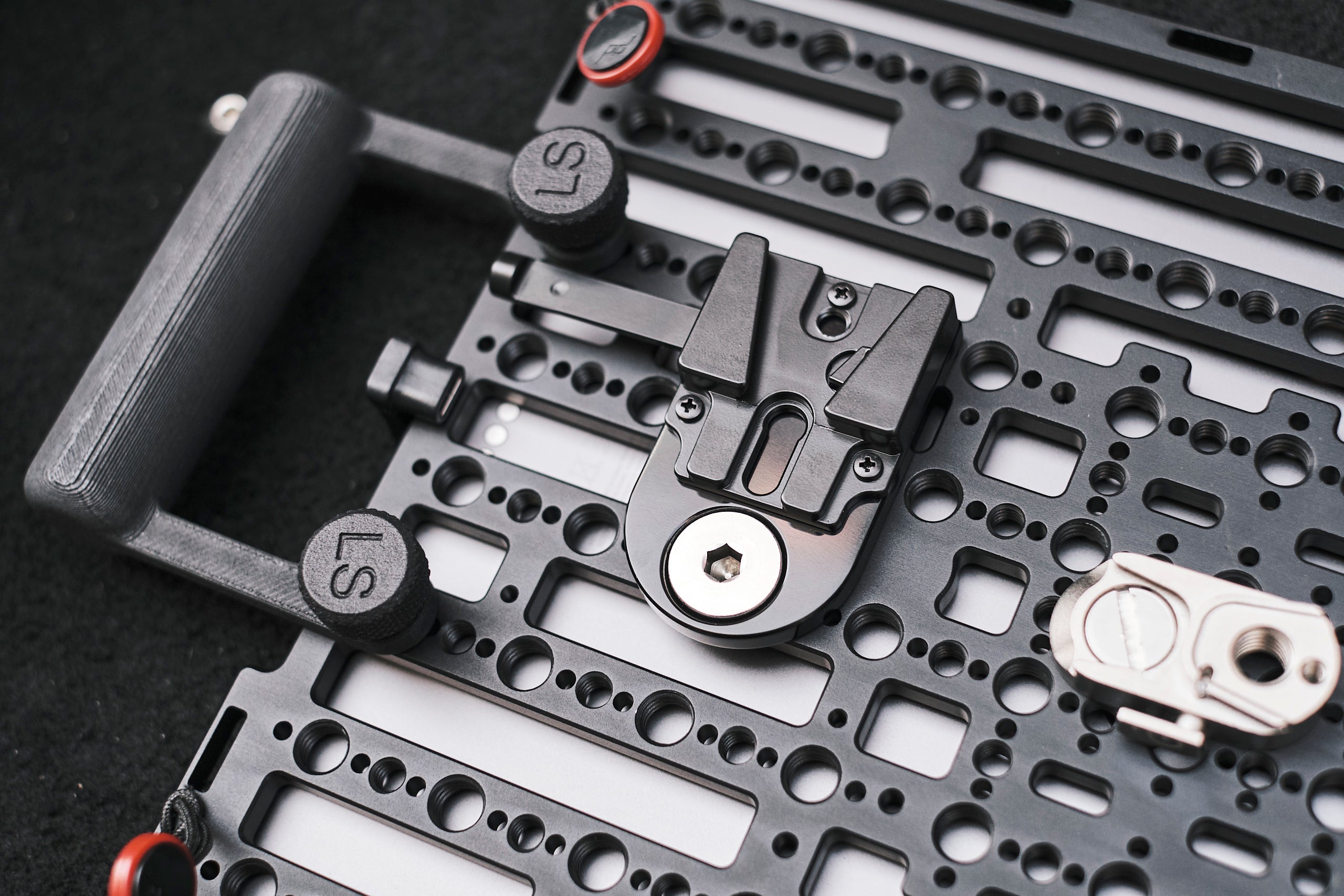

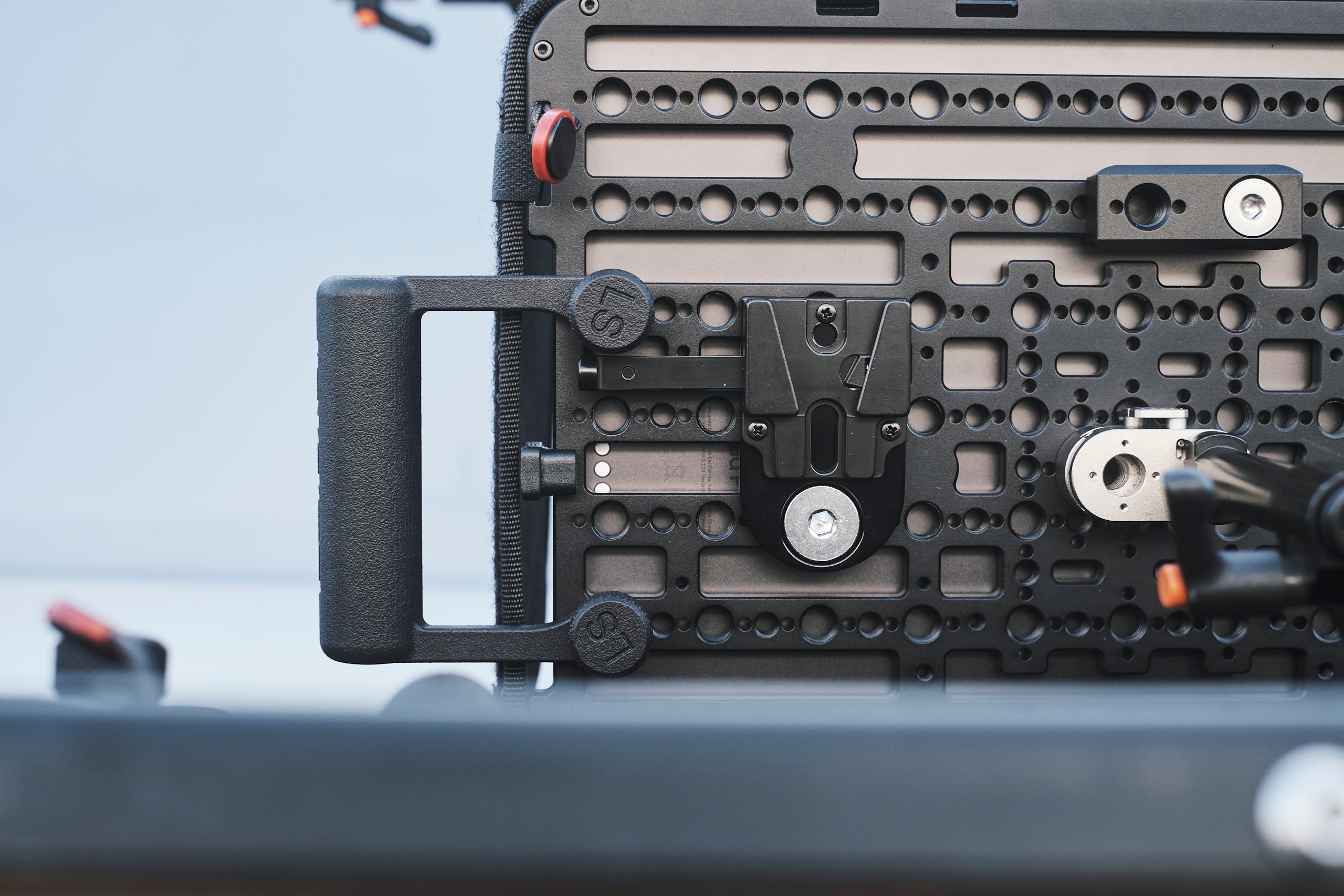

- Arri pin loc holes to use with compatible accessories (such as LNKcine and Wedgie QR's)

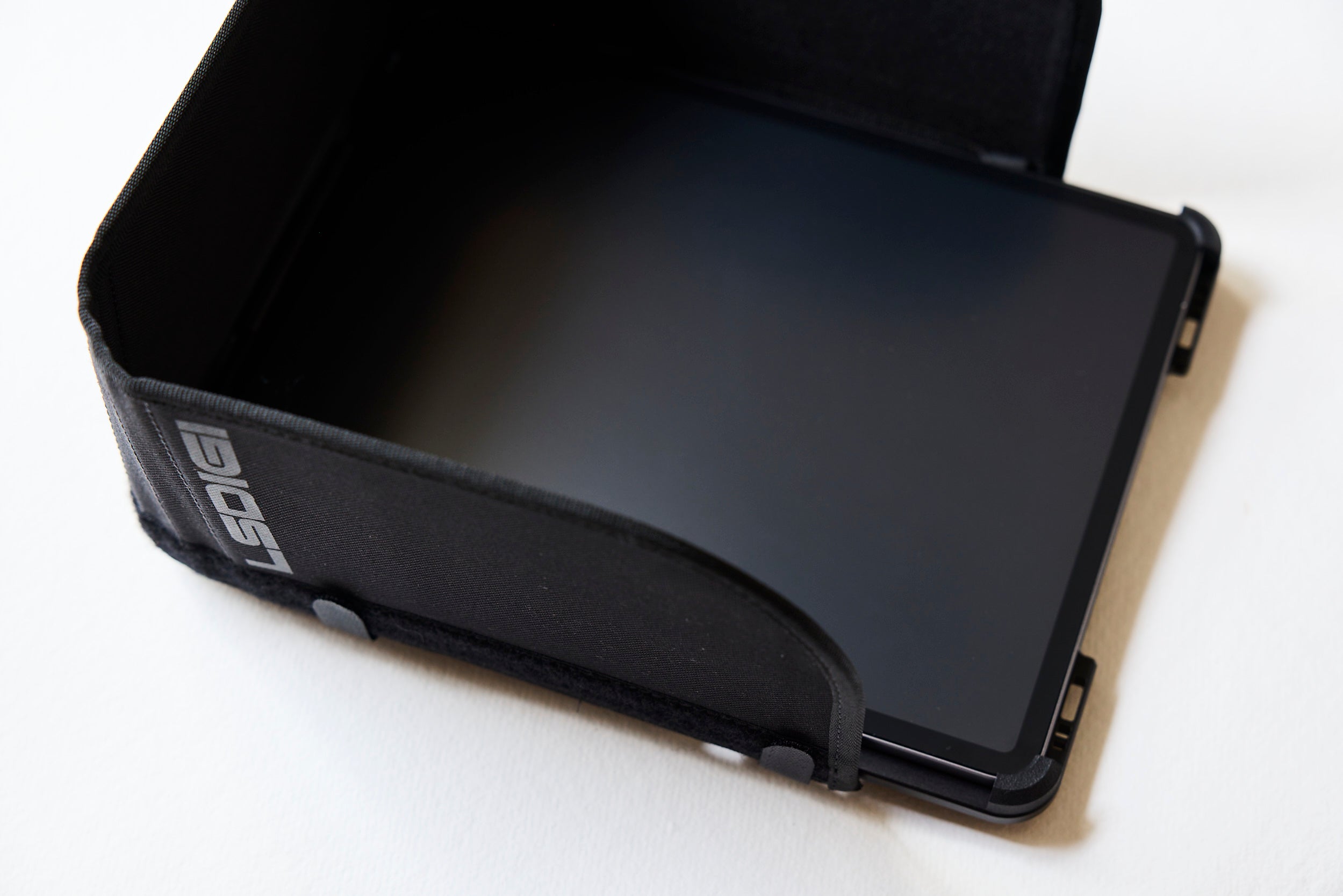

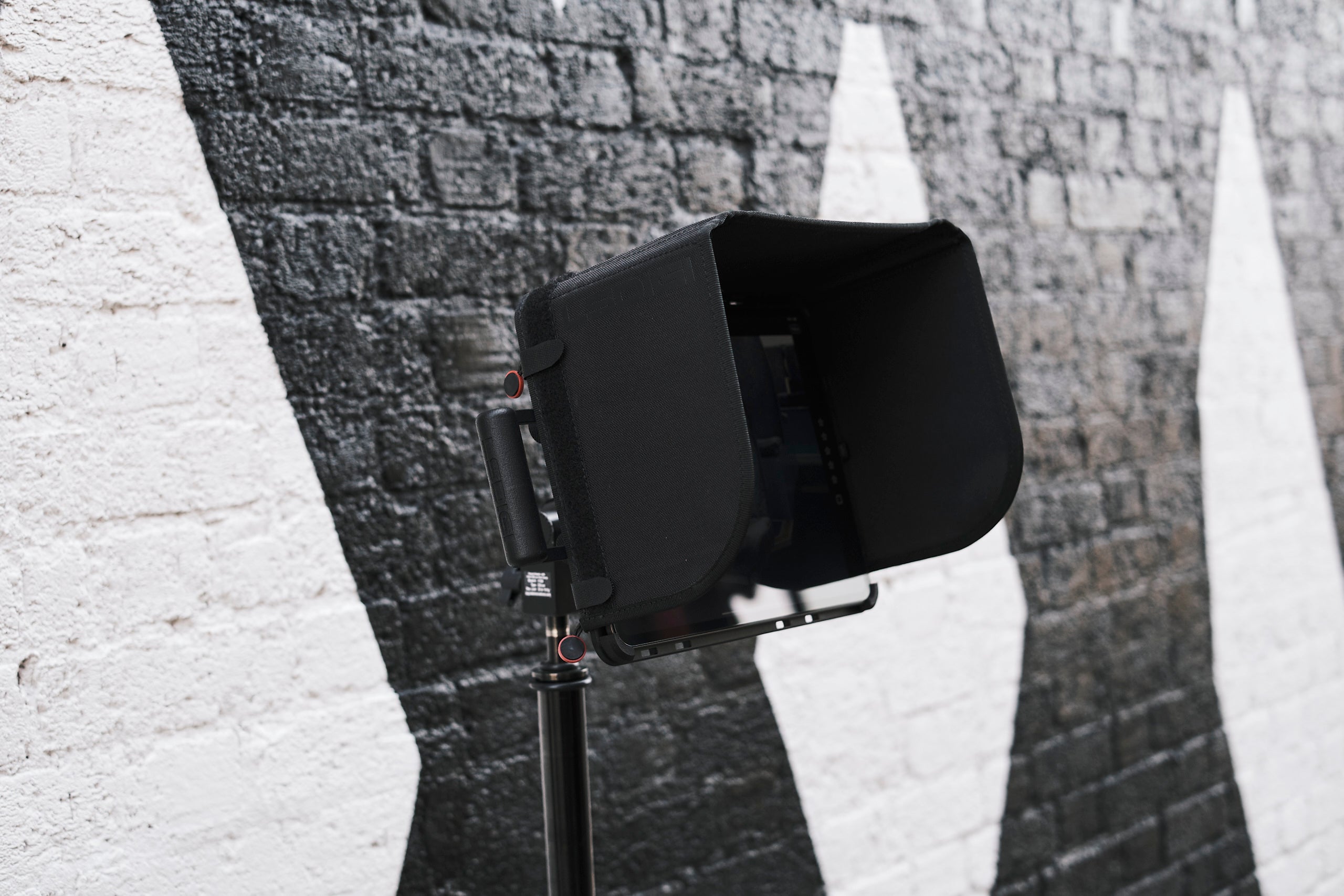

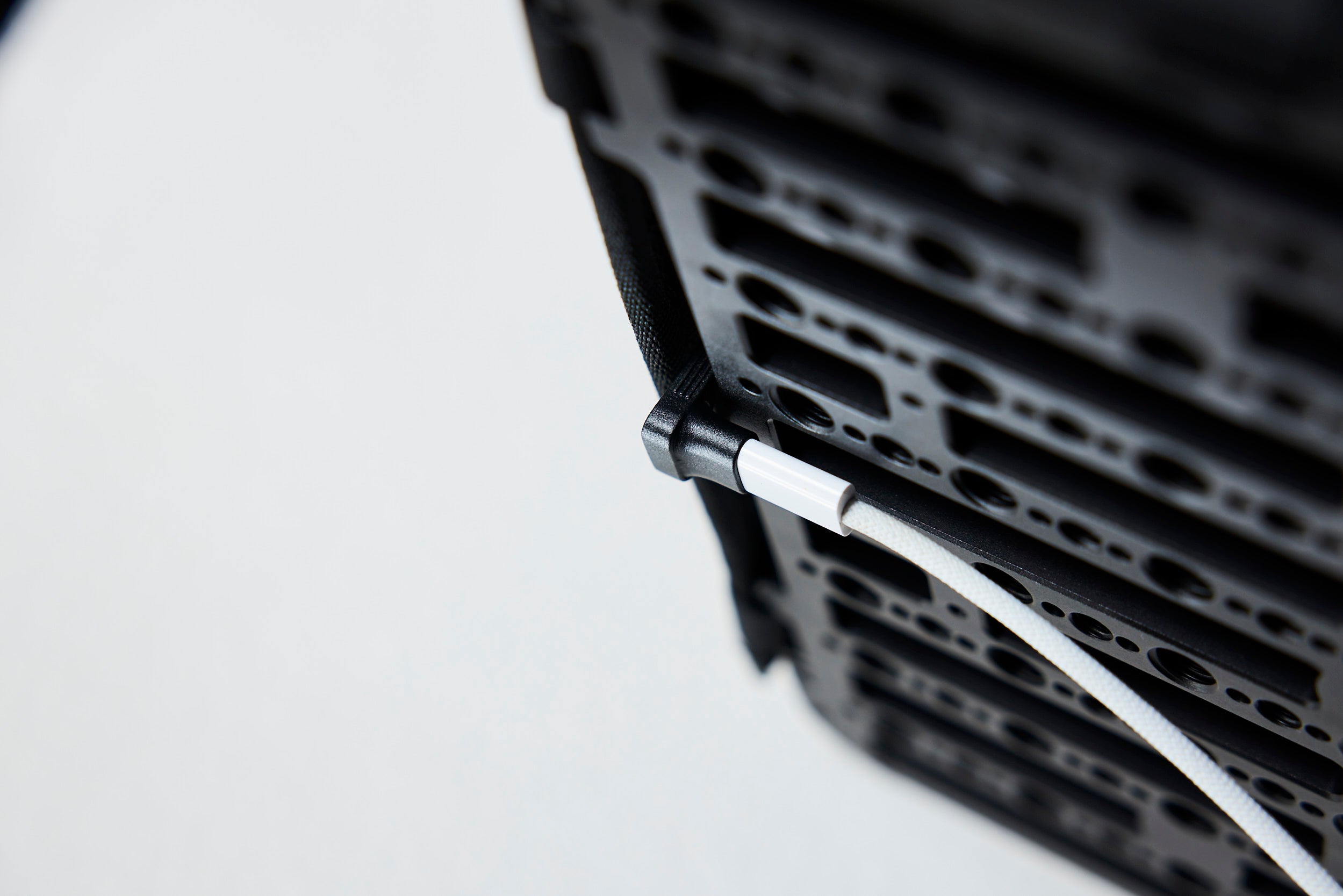

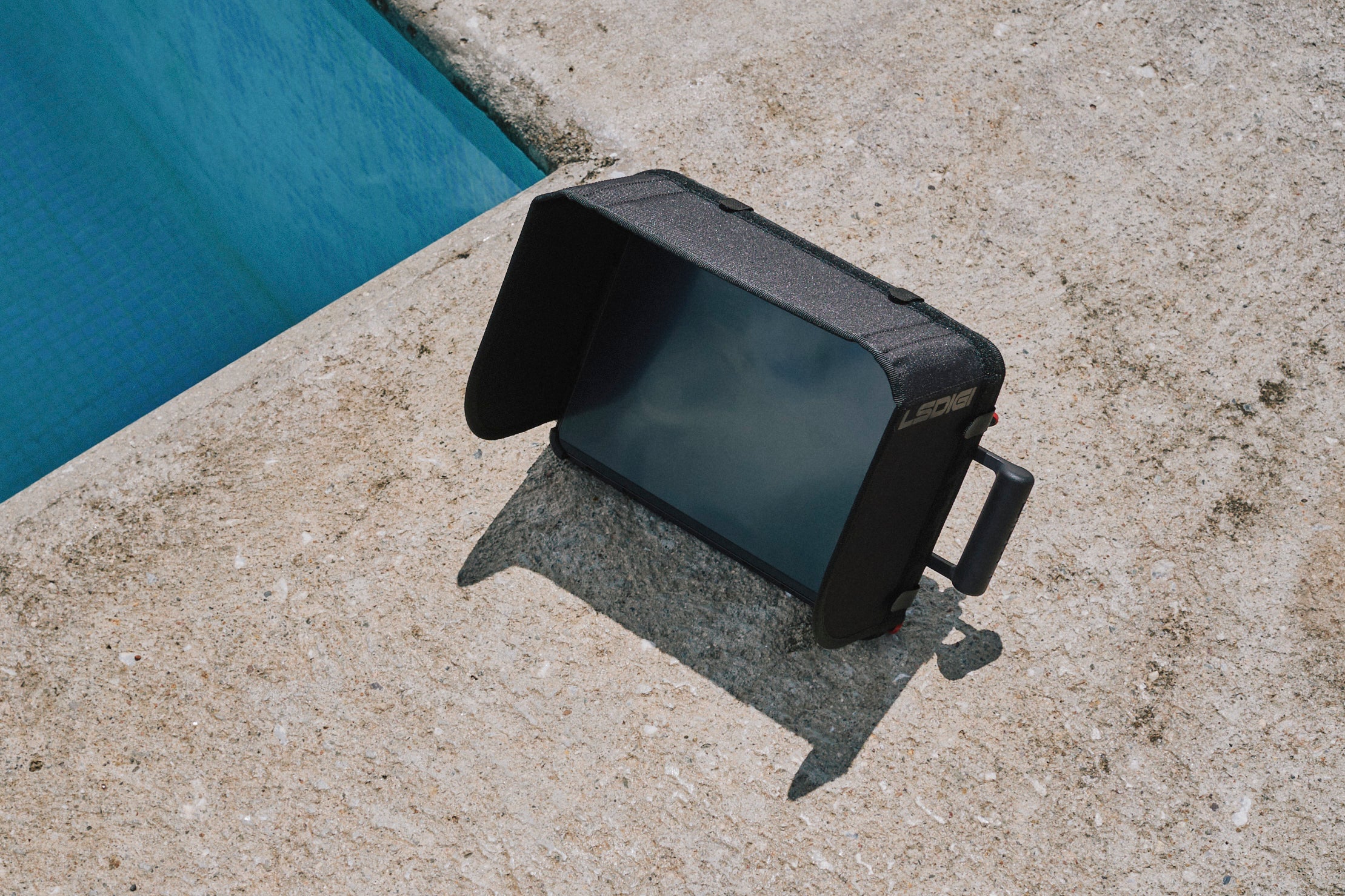

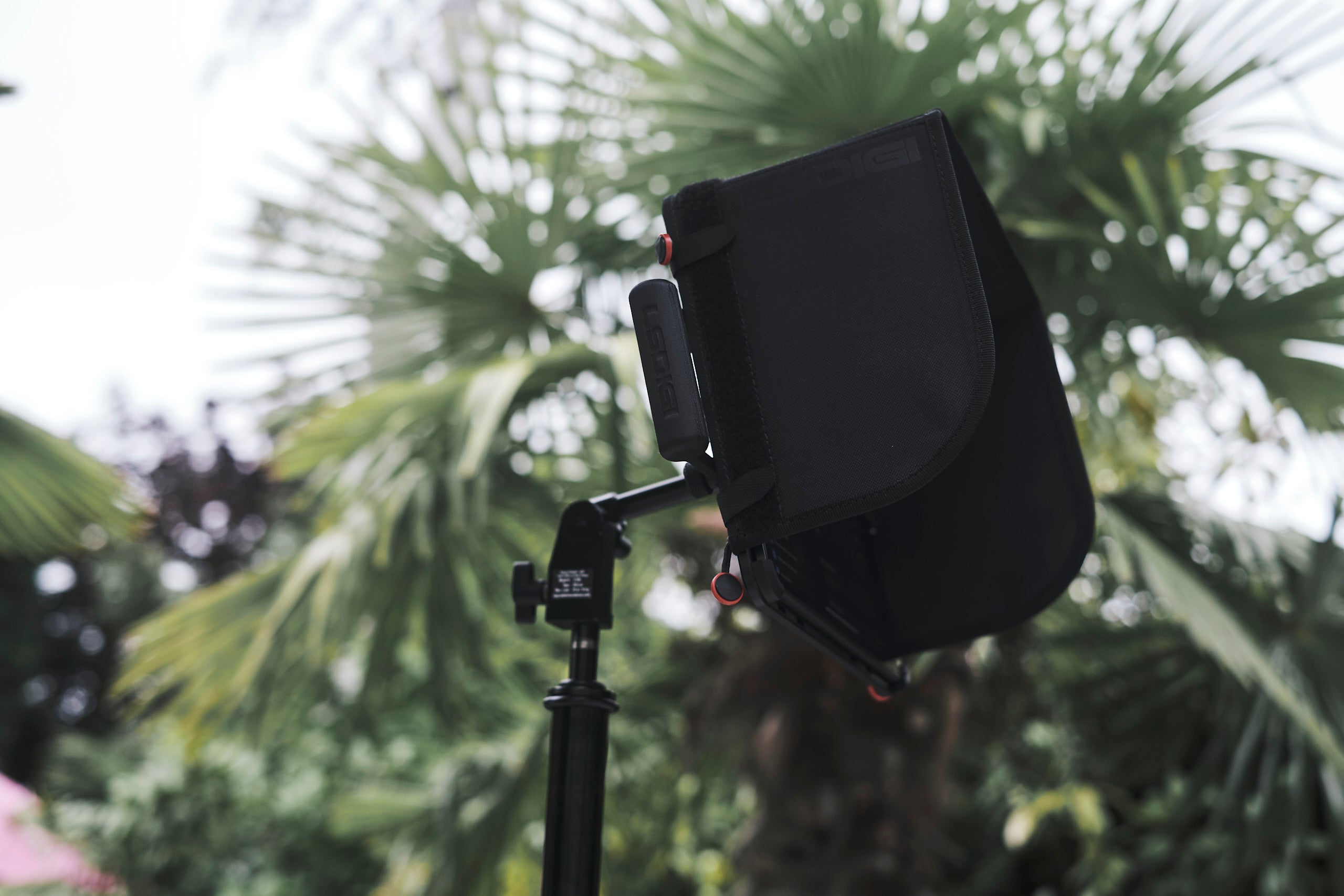

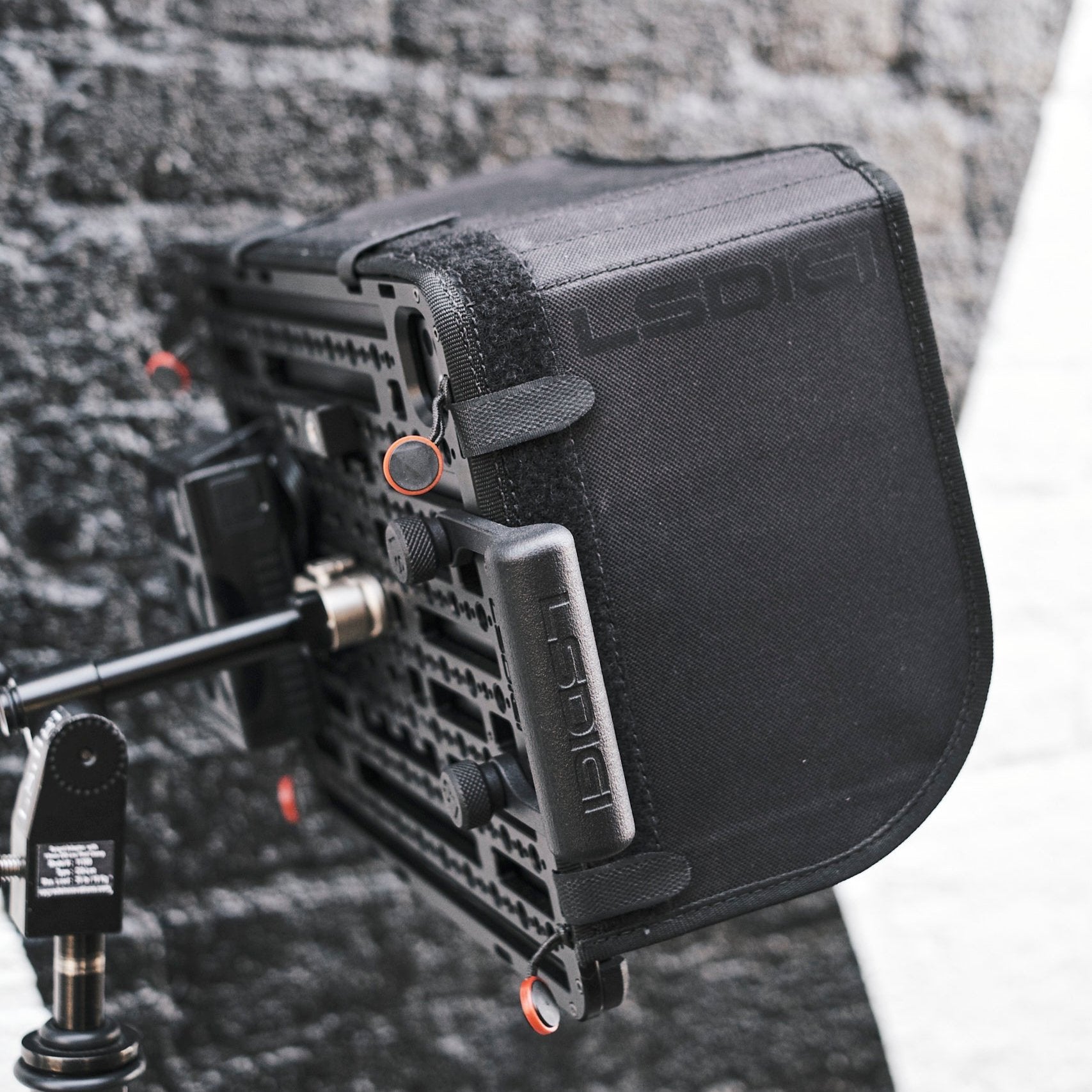

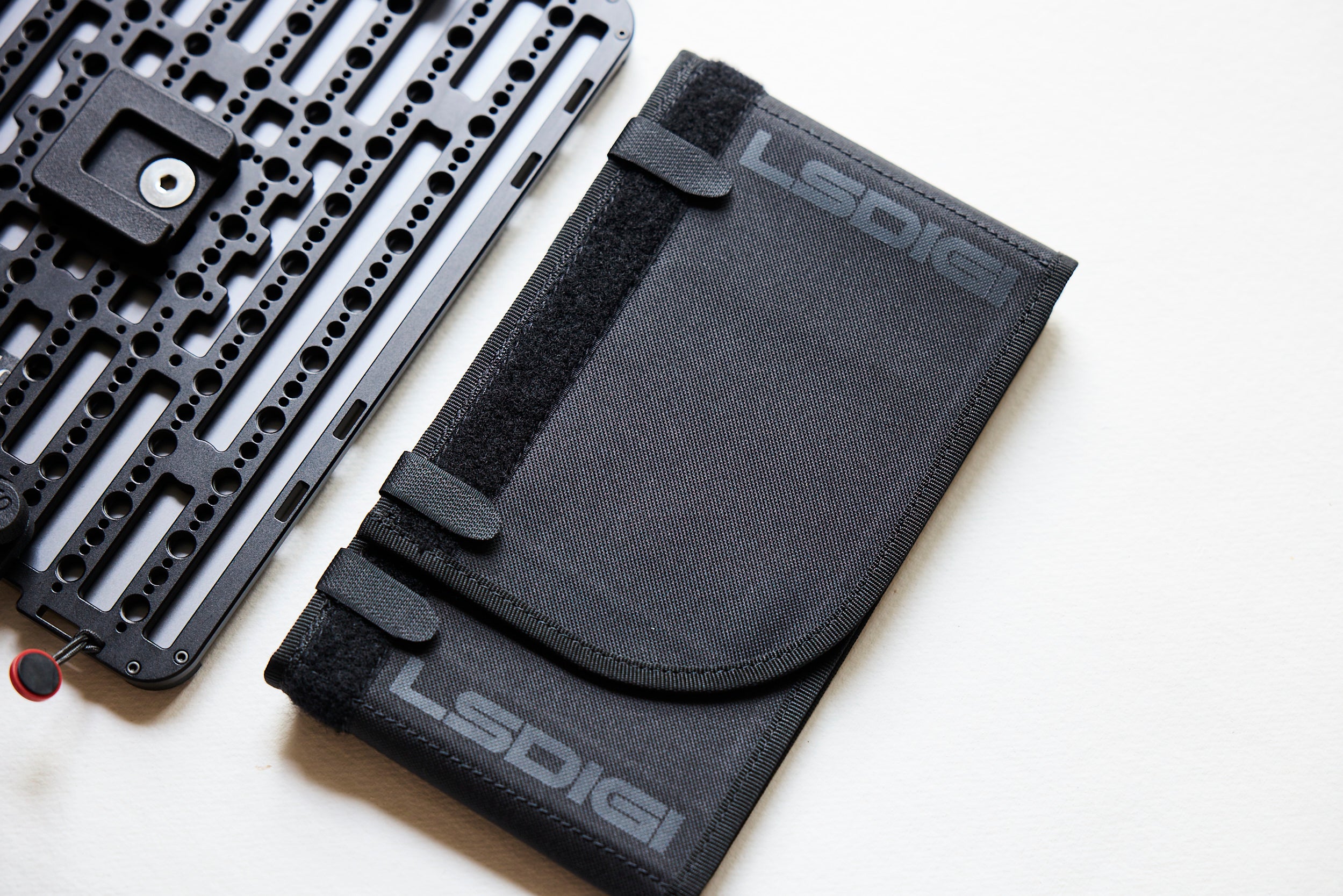

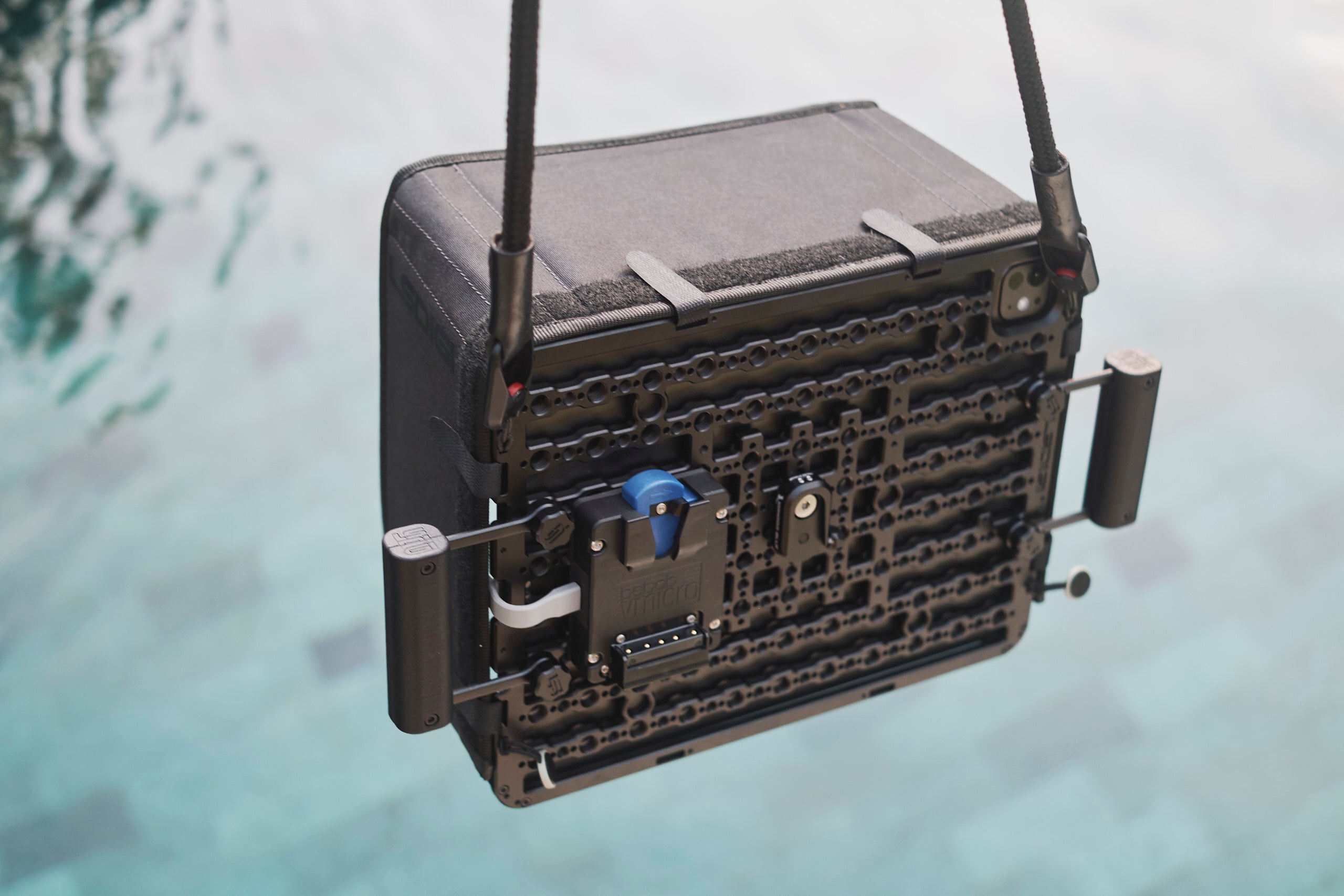

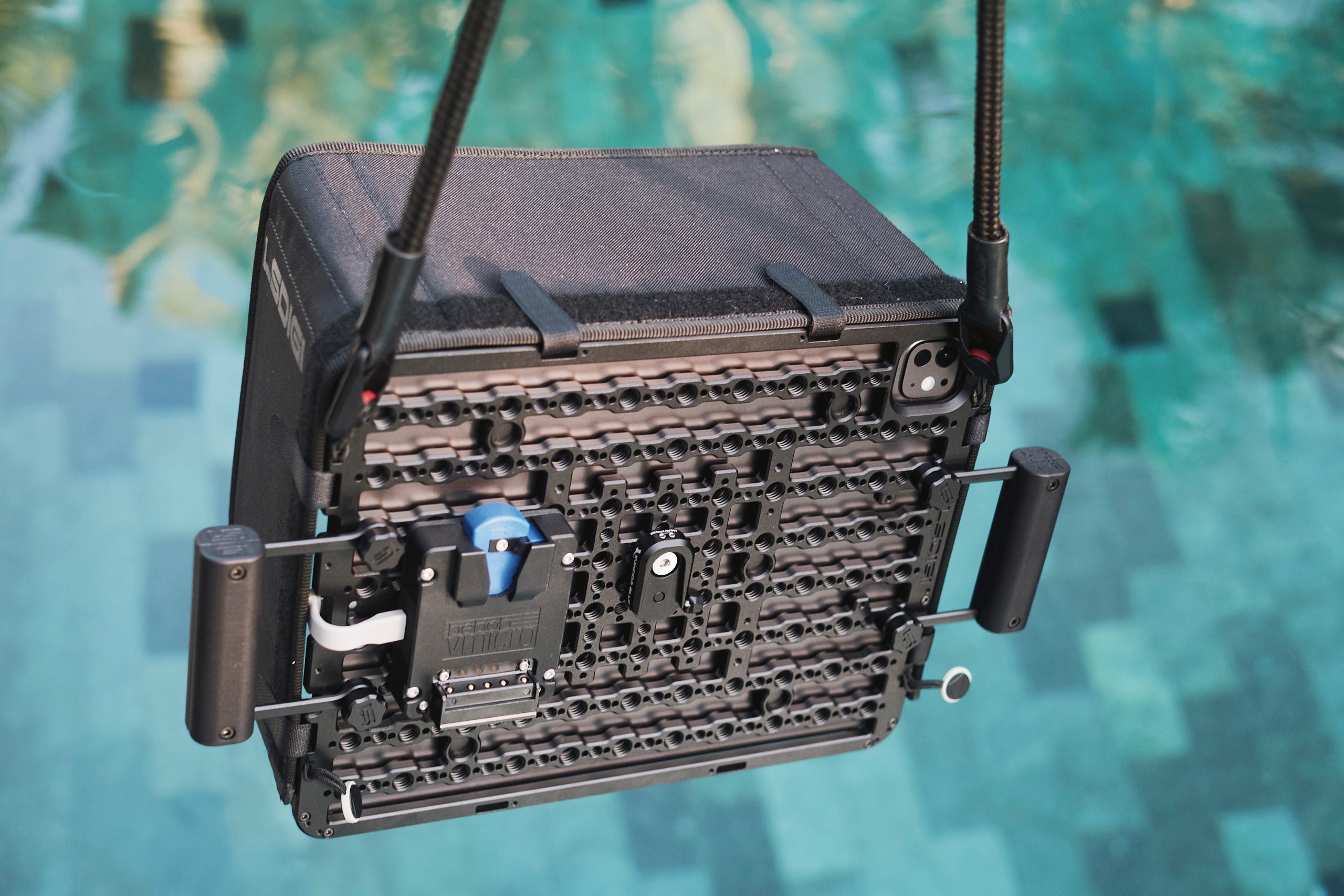

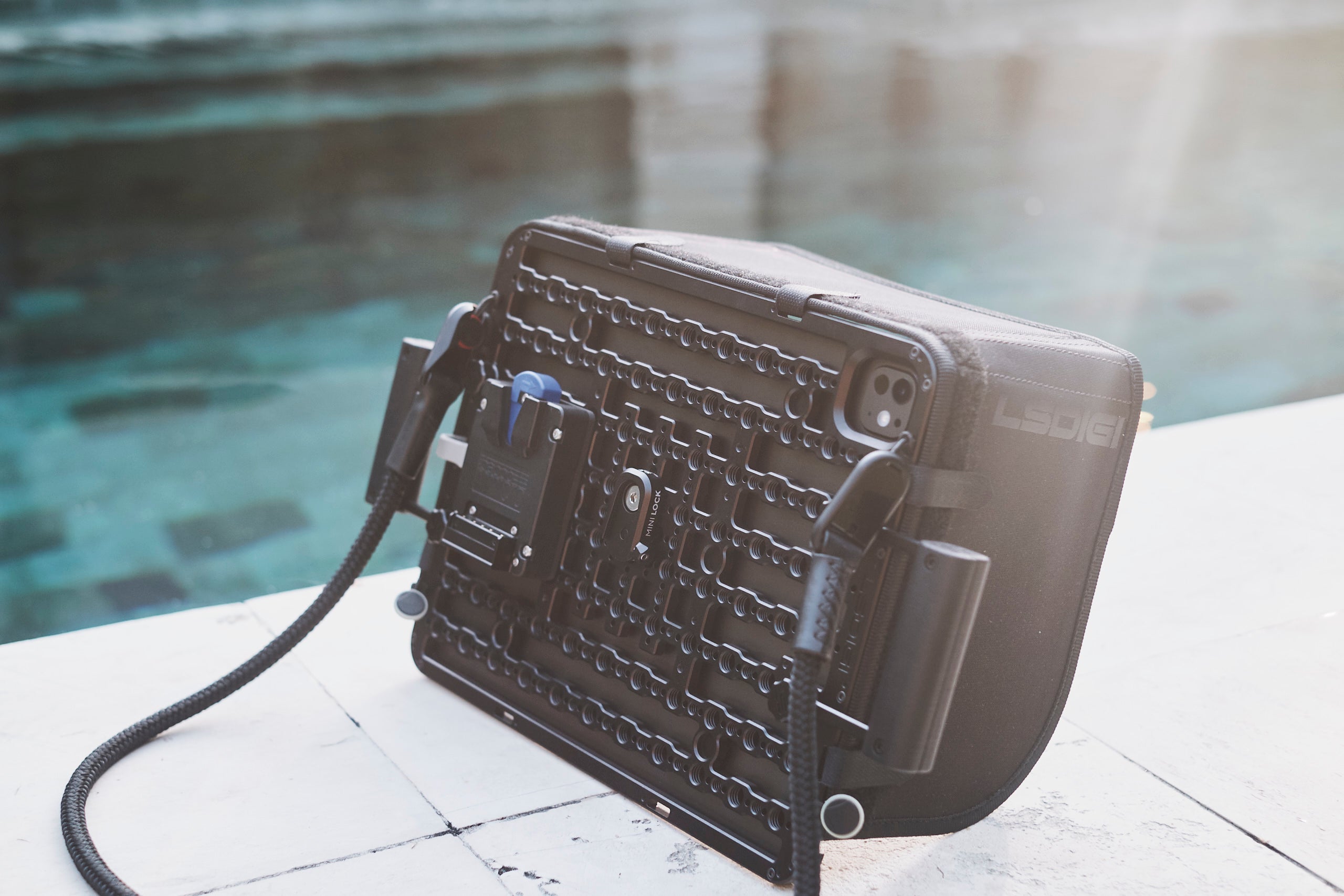

- Sun Hood made from lightweight and tough Cordura, compatible with both portrait and landscape* orientation (for landscape orientation please use the supplied USB C U shape adapter for best cable routing)

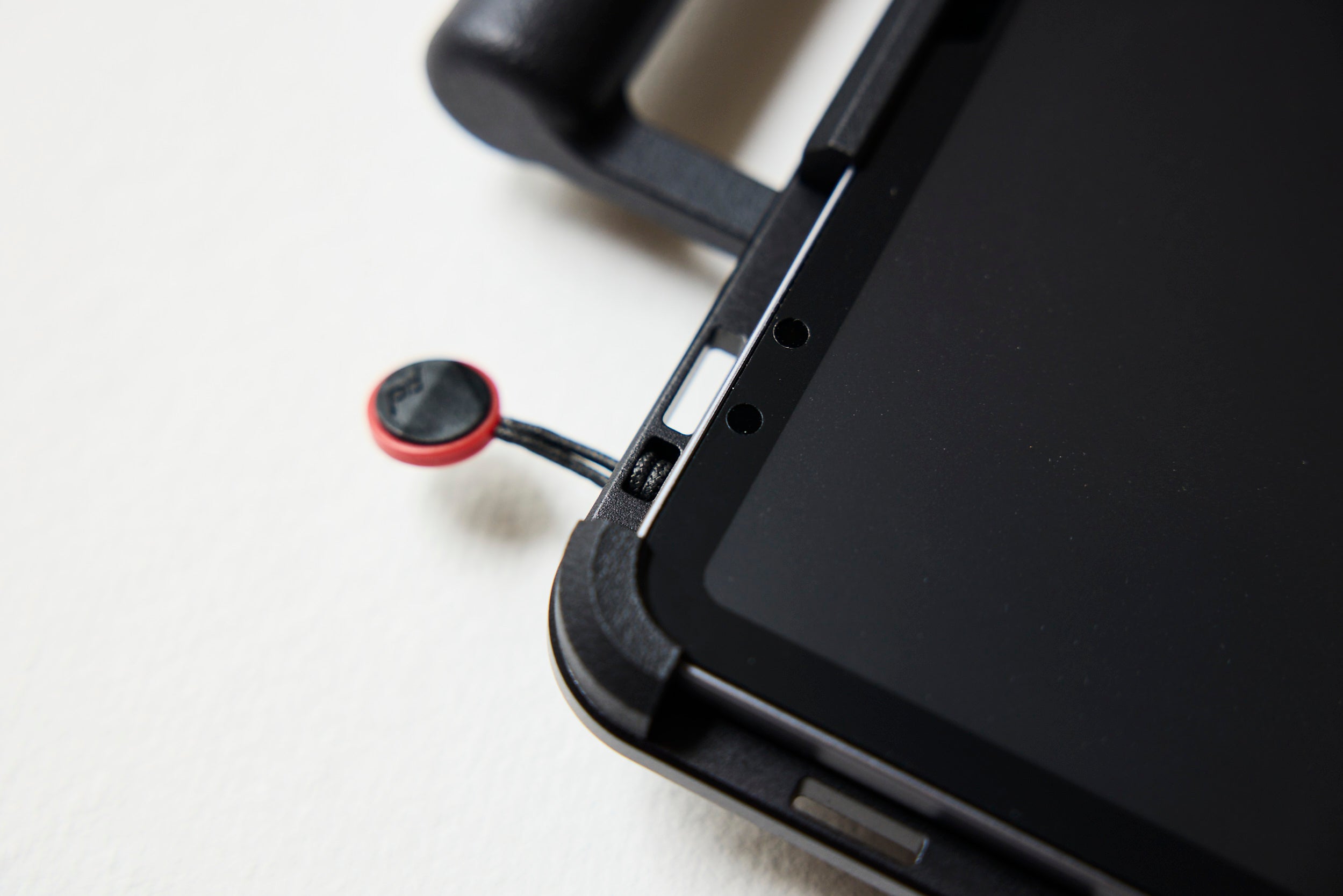

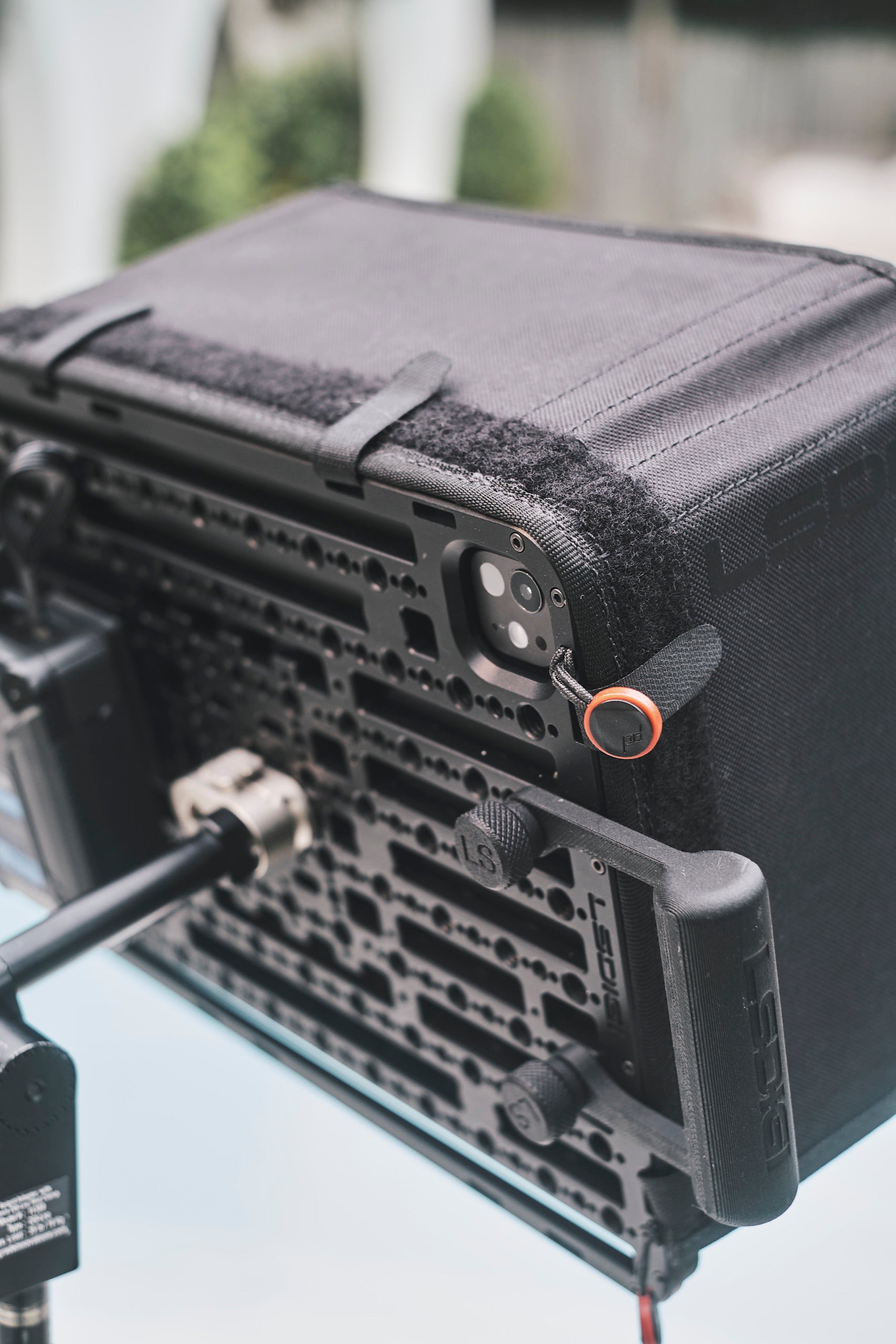

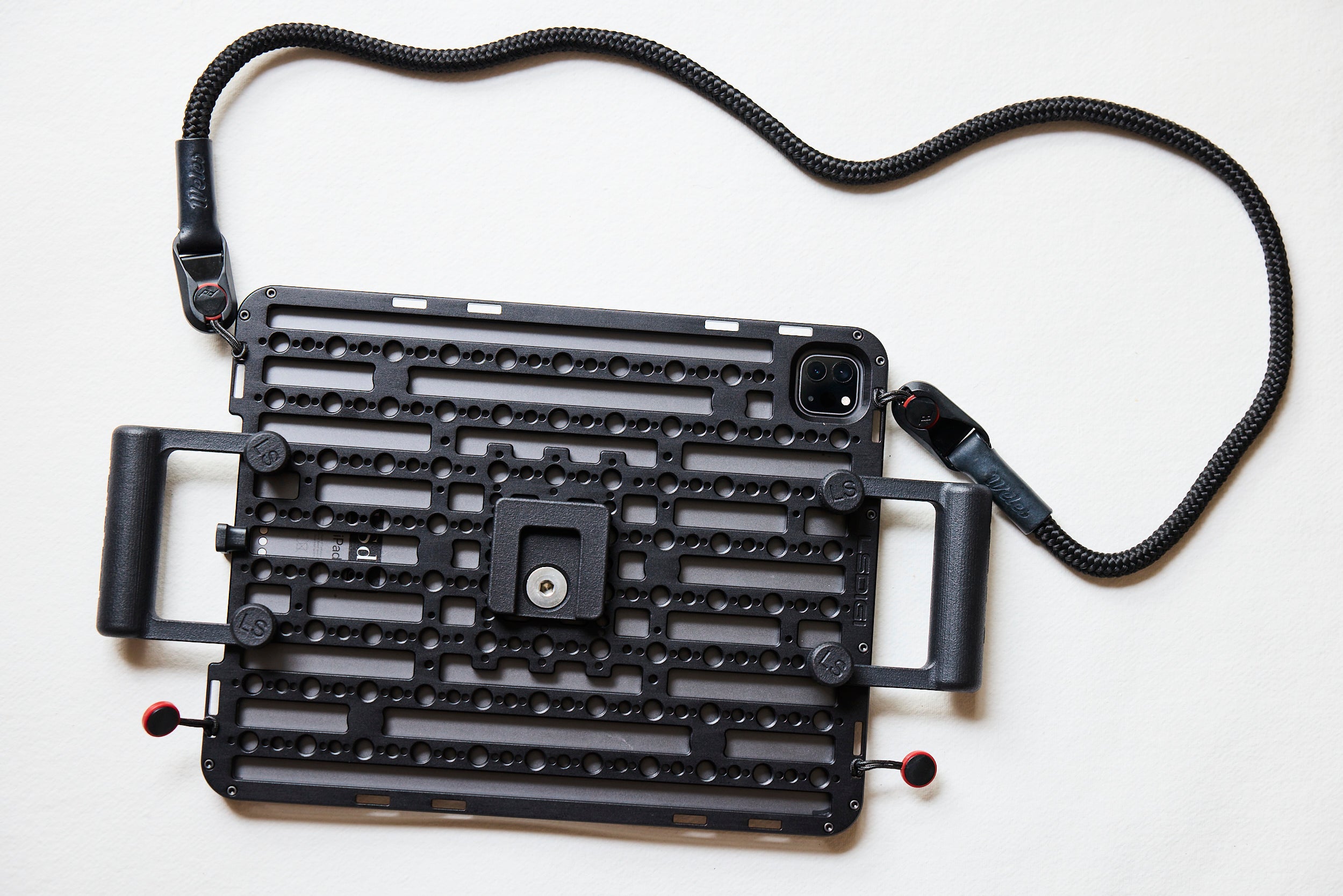

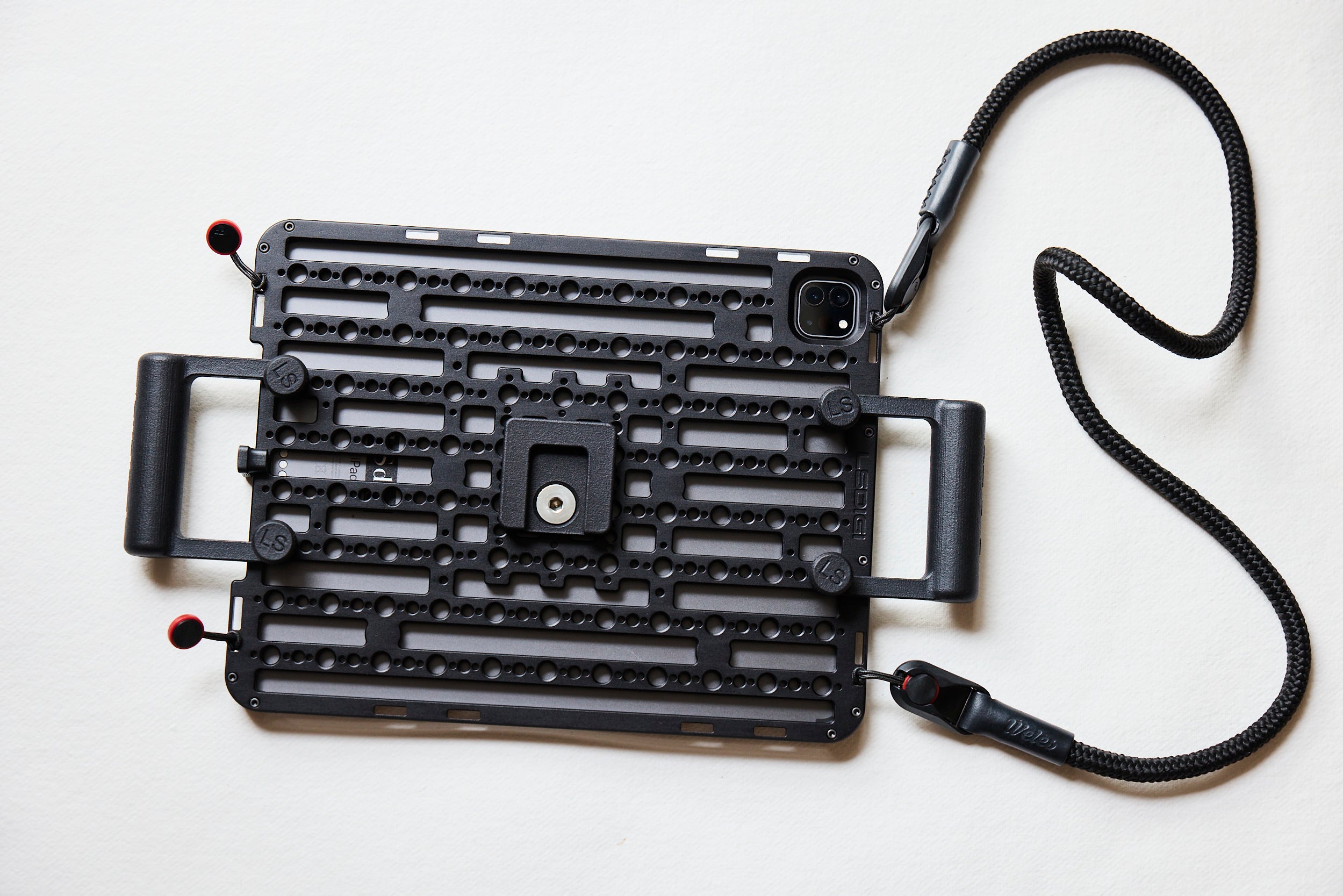

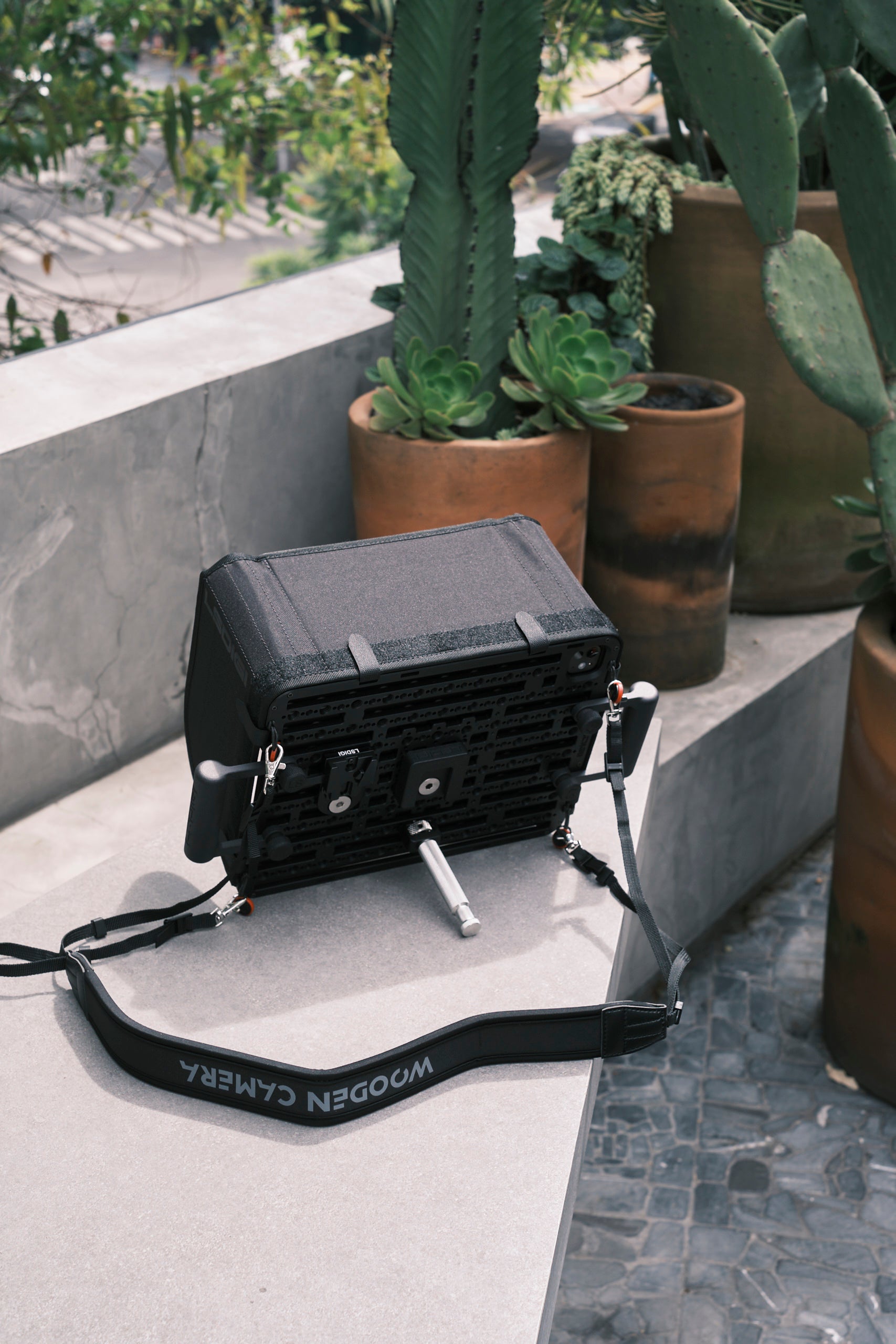

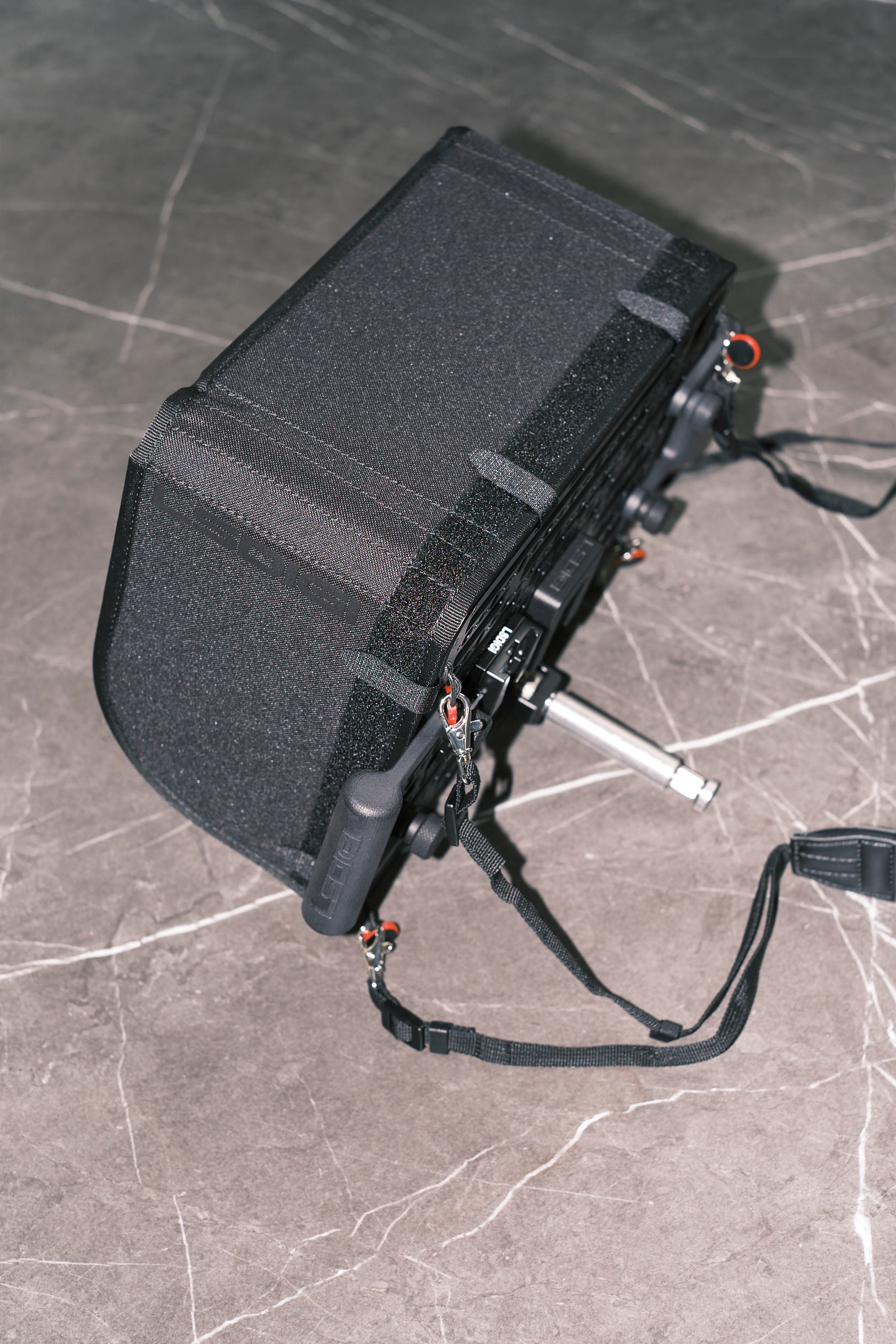

- Recessed slots for Peak Design anchor which provide QR neck strap attachment in portrait / landscape orientation, or director style 4 point strap made by Wooden Camera.
-

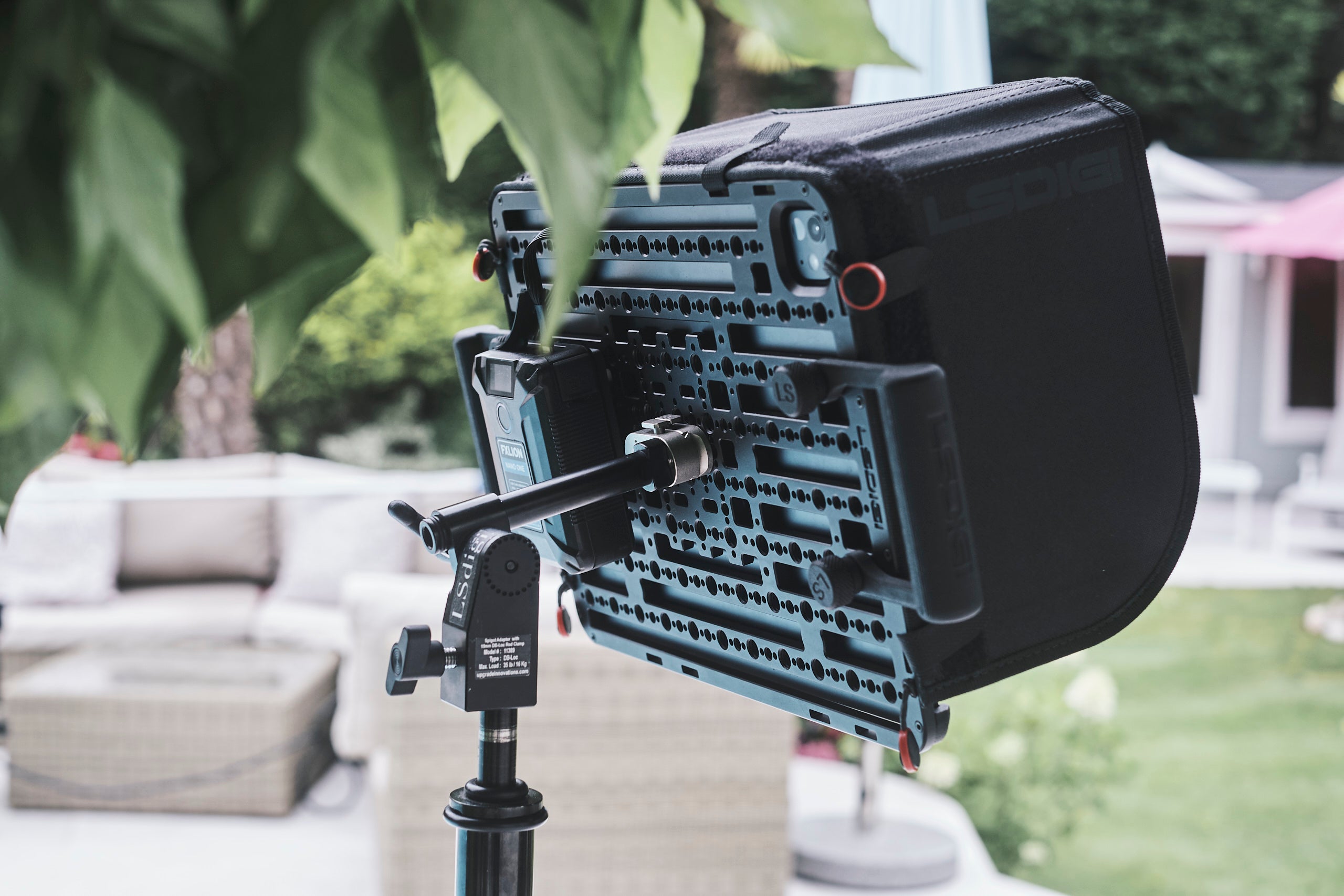

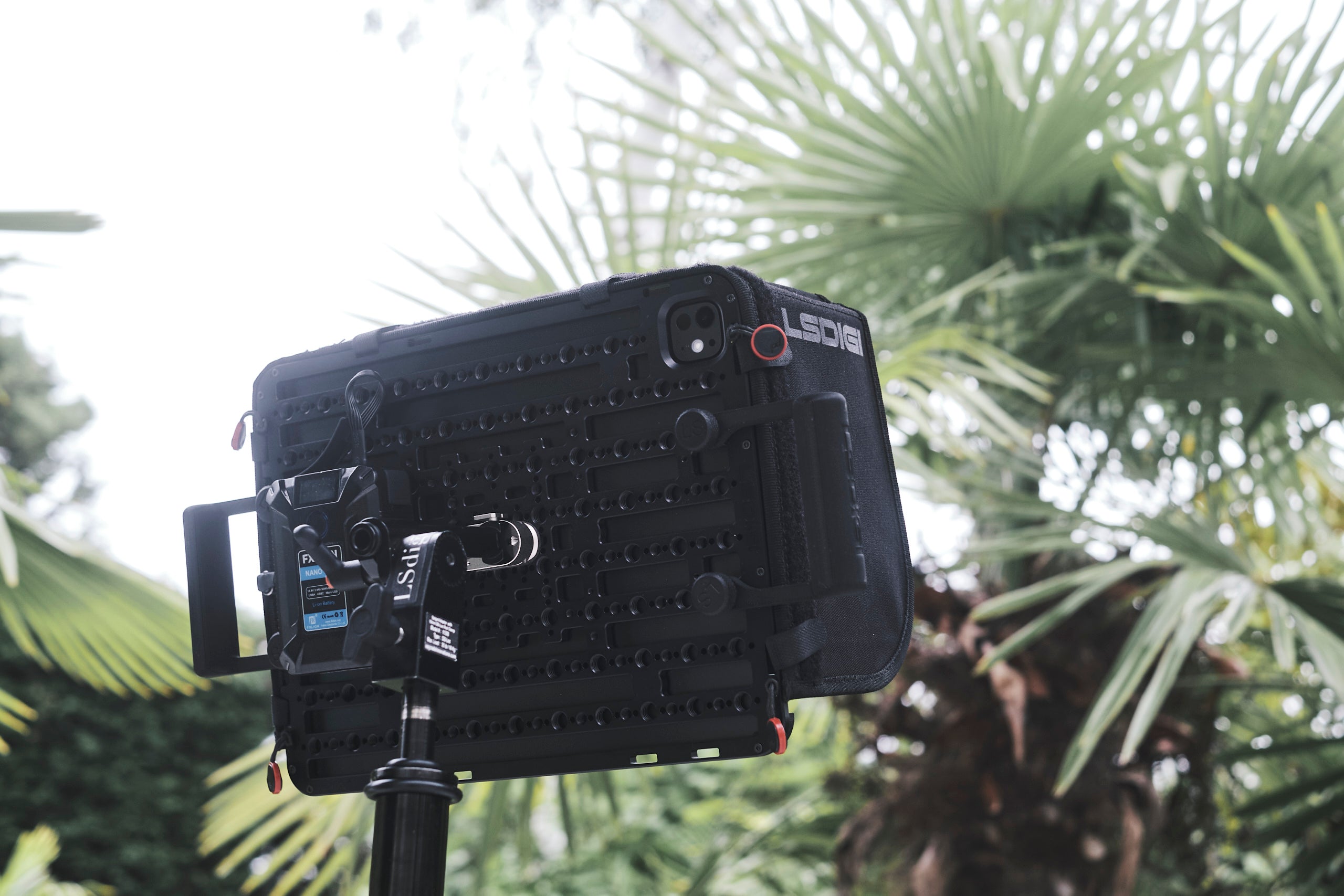

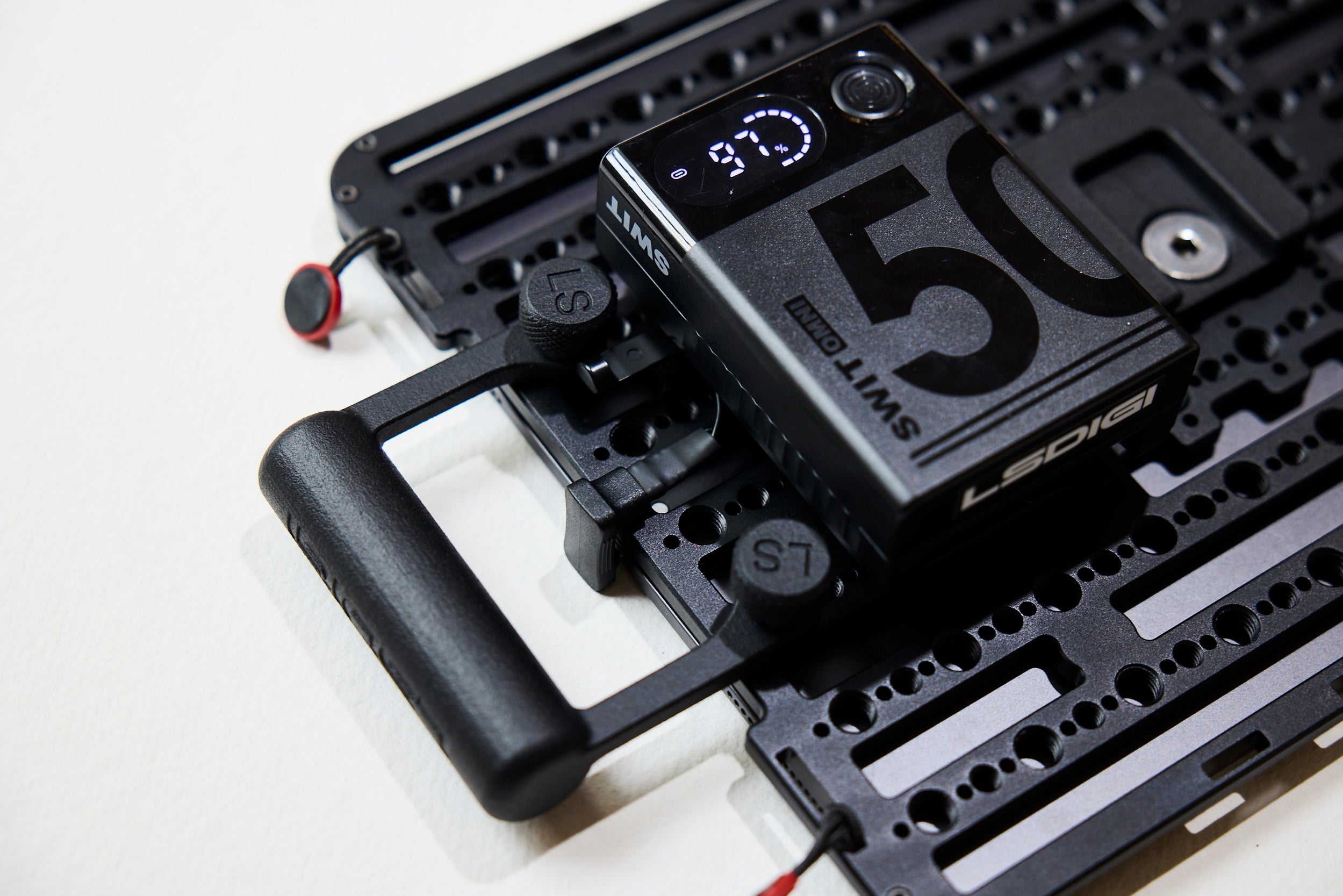

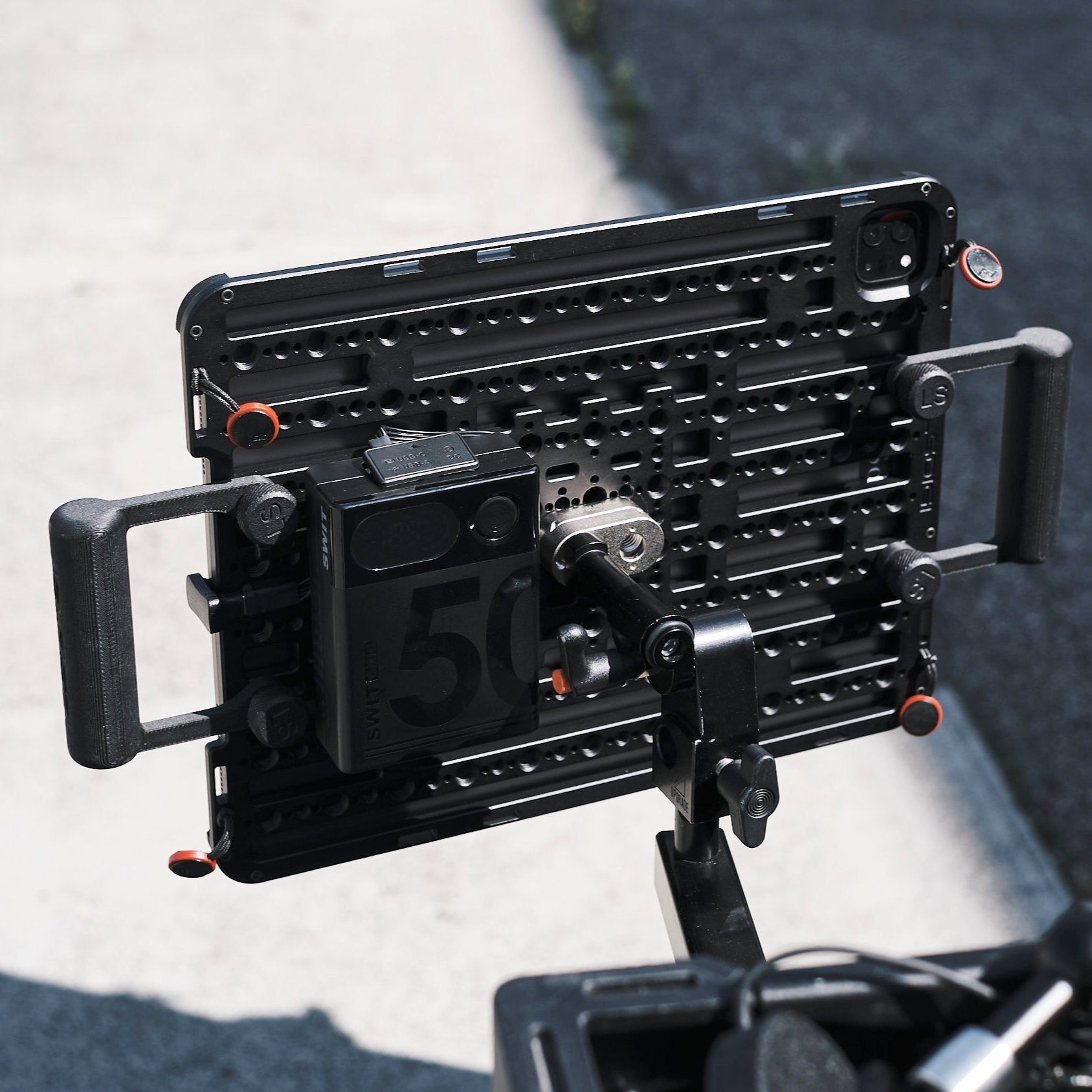

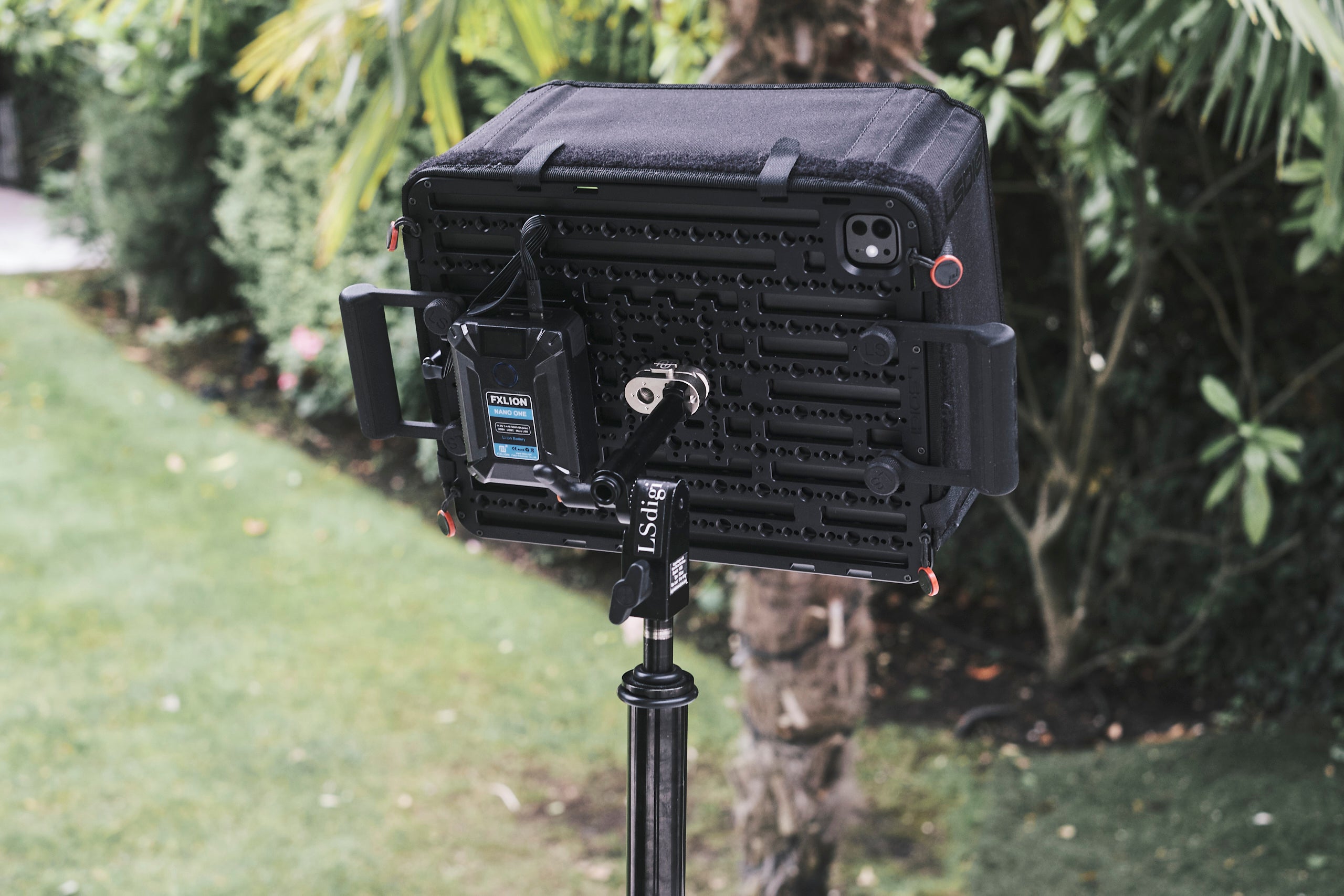

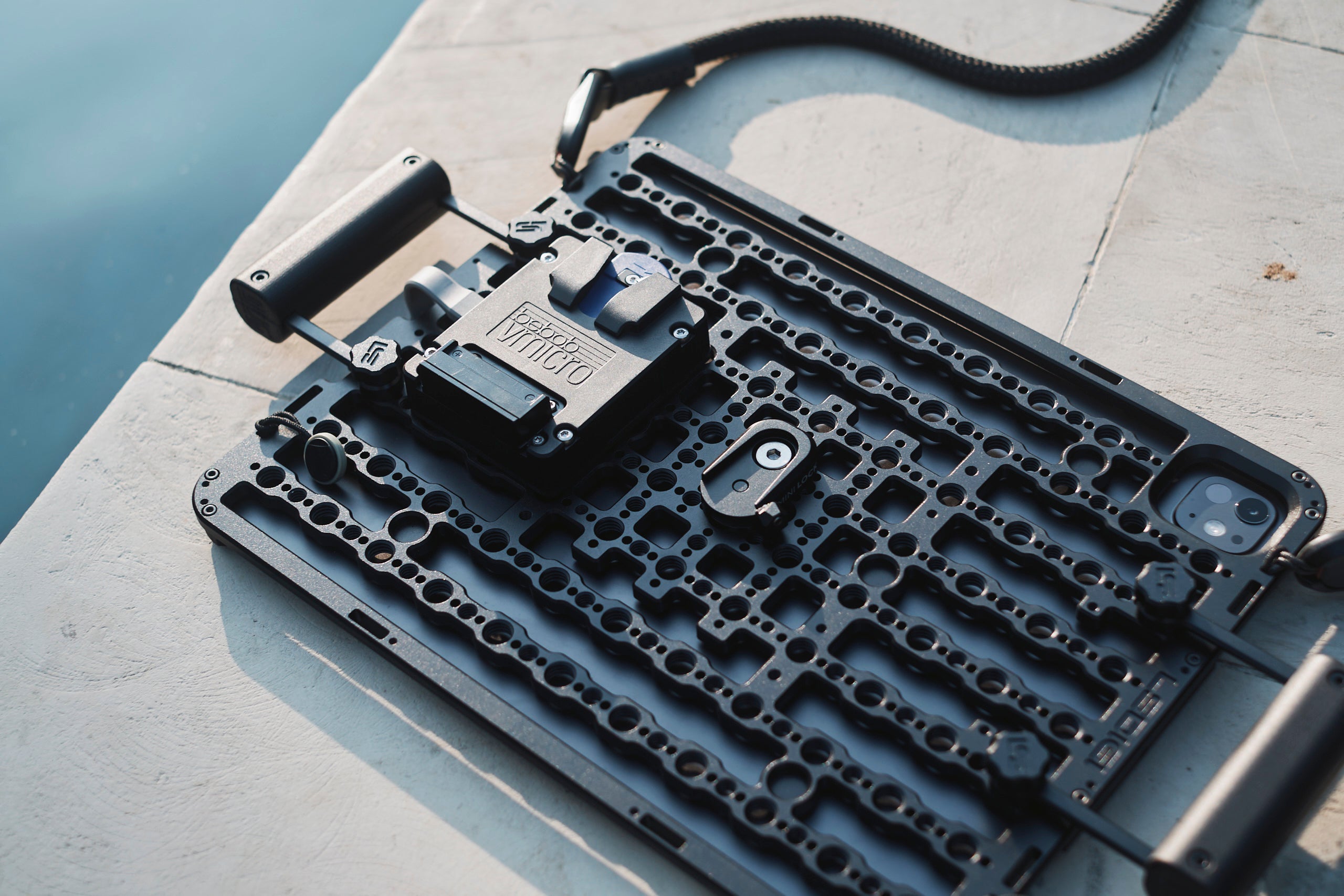

Two mounting positions for Bebob Micro V Lock or AB Mount Plates to provide DTAP and / or Lemo power output
- Compatible with all accessories for Digiplate Systems without need for screw spacers
...Lots more accessories to come (including modular carry bags)!
SUGGESTED ACCESSORIES
POWER: LSdigi V Lock Cold Mount / Bebob V-Lock DTAP+LEMO Plate / Bebob Gold Mount + 2xDTAP Plate / NPF Battery to USBC plate /

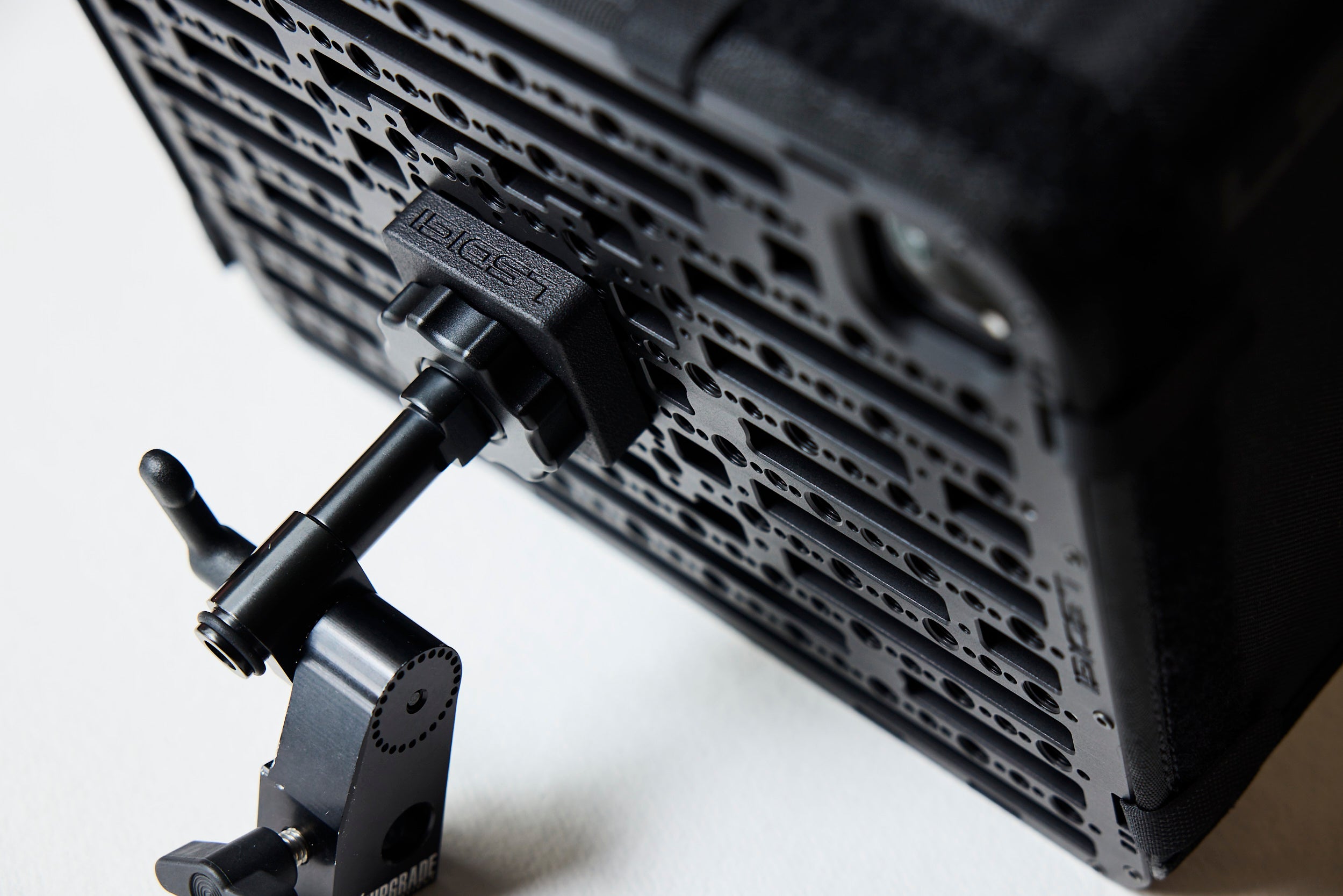

MOUNTING: LSdigi QR Plate + Pin loc QR Mount / LNK Cine QR / Upgrade Innovations Spigot Adapter + 3/8-16 Pin loc 15mm Spud / UI Vesa Adapter / Peak Design Anchors / Peak Design Neck Straps / Manfrotto 155RC
BATTERIES: SWIT 50wh Omni / FXlion Nano One /
MATERIAL

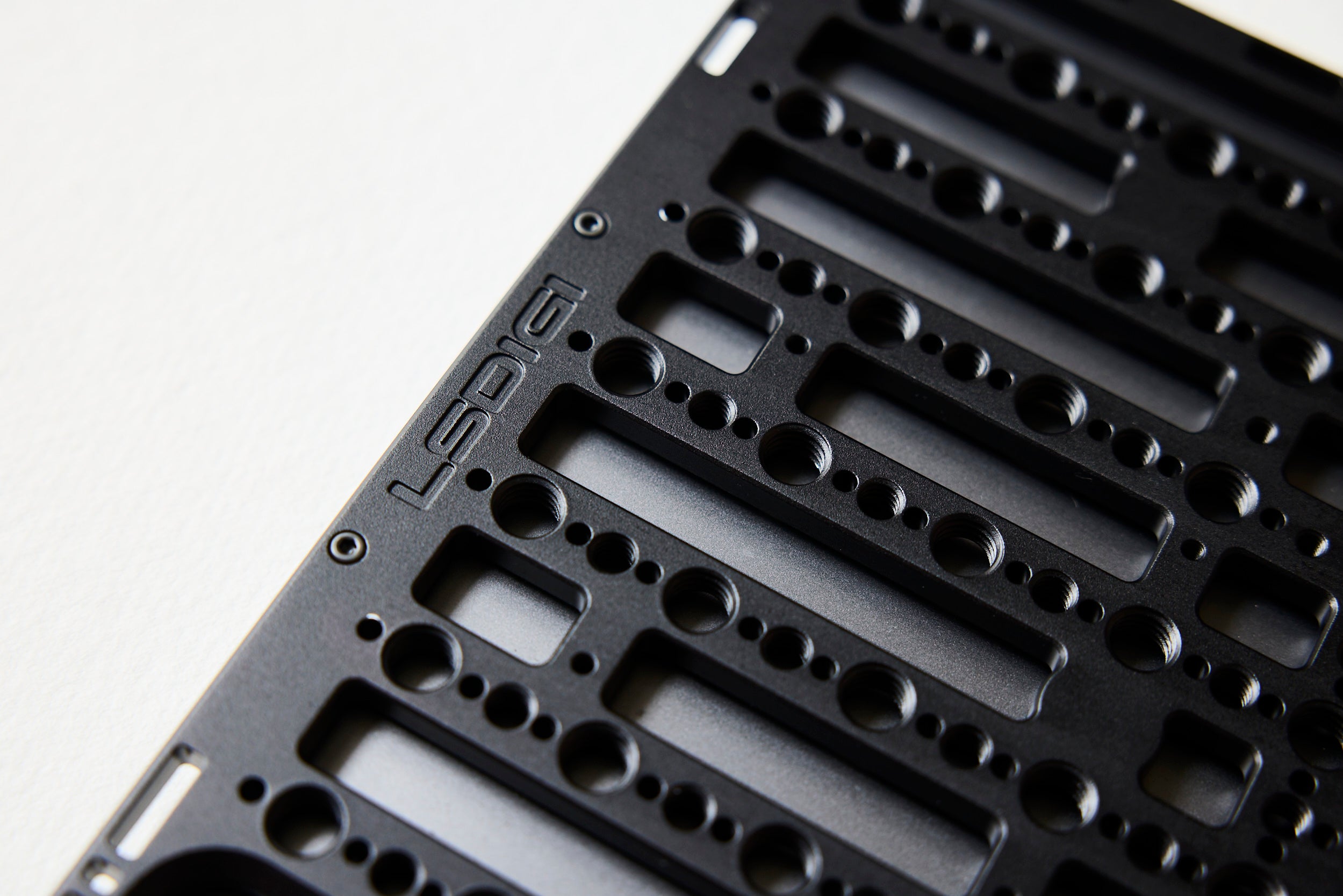

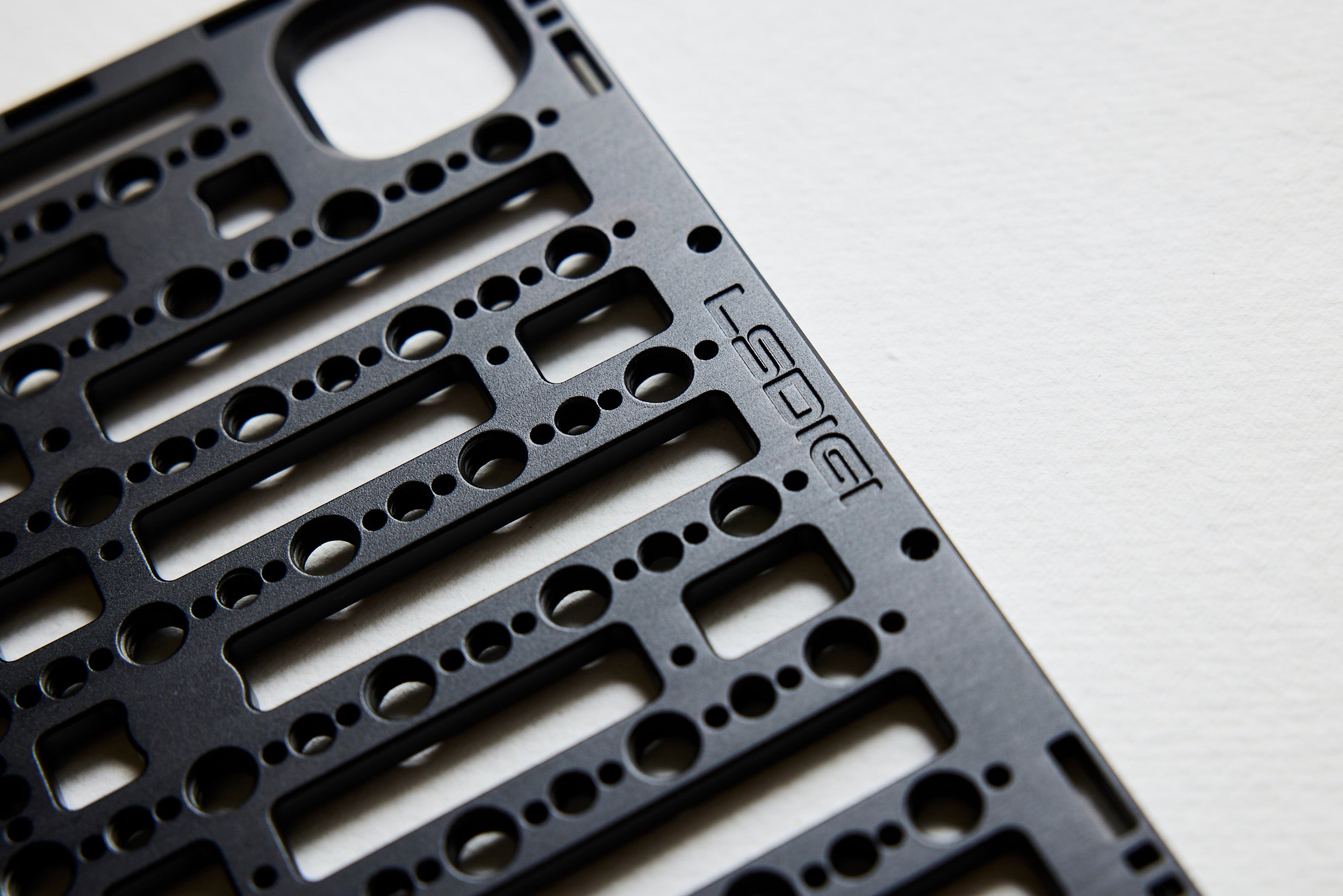

Plate: CNC Machined from 6061-T6 Aluminium, Bead Blasted and Anodised Type II (Gloss Finish).
iPad Mounts: SLS Nylon PA12, brass heat set thread inserts

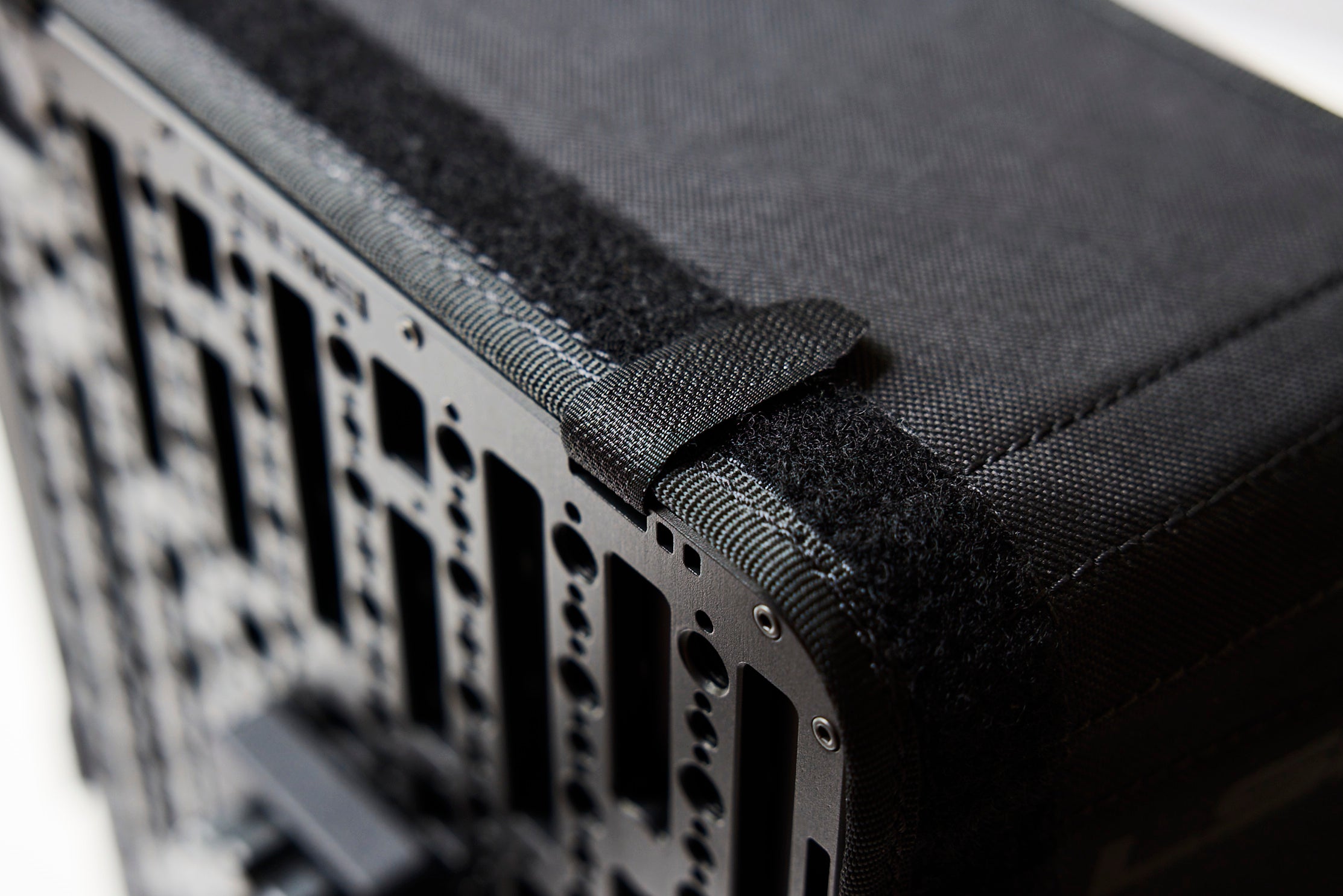

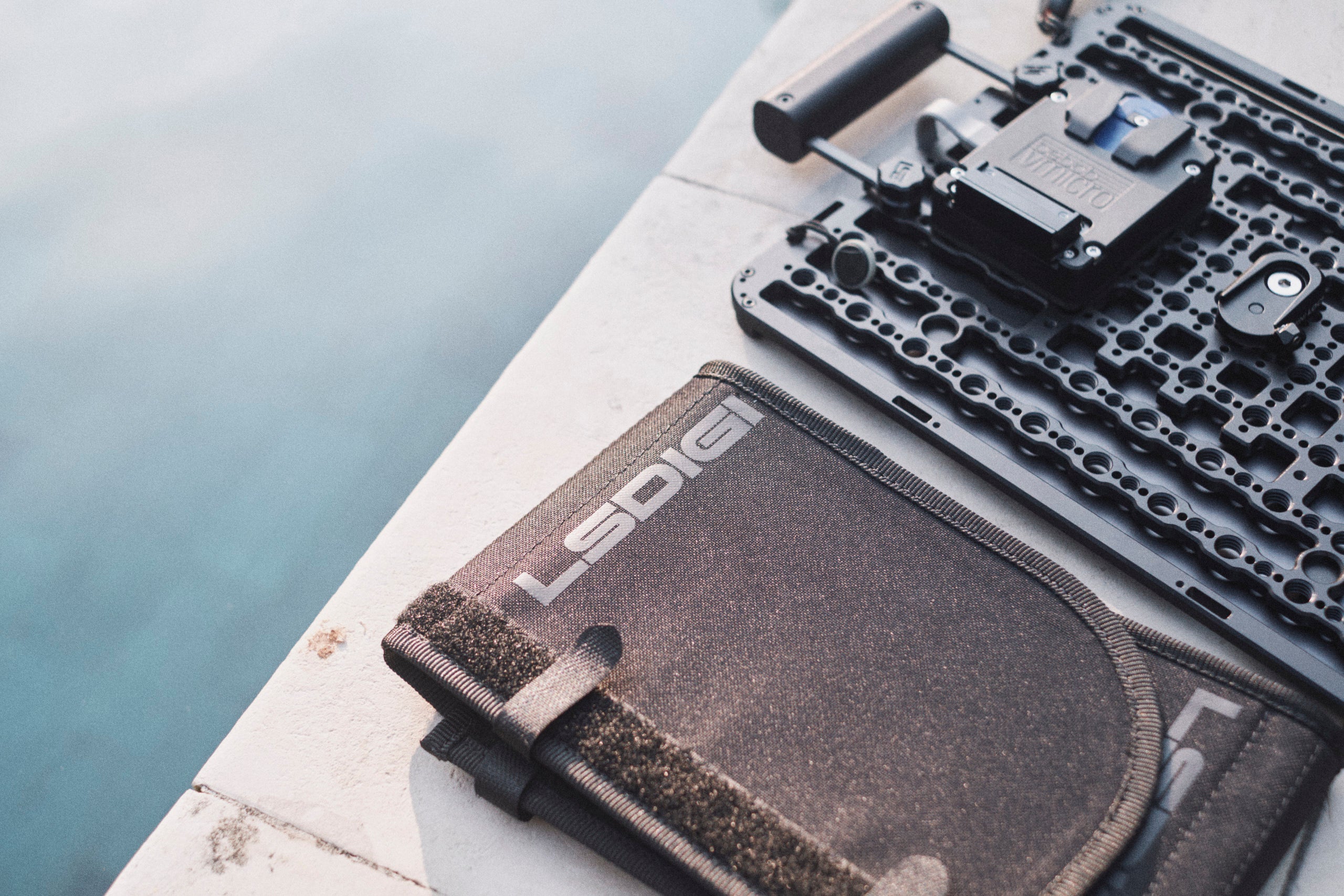

Hood: Cordura, reinforced walls, velcro straps.
DIMENSIONS
W: 230mm x L: 295mm x D: 6.4mm (0.25in)
Weight: 569g (cheeseplate only)
PACKAGE CONTENTS
1x LSdigi iPad Pro Cheeseplate
1x LSdigi iPad Pro Shade

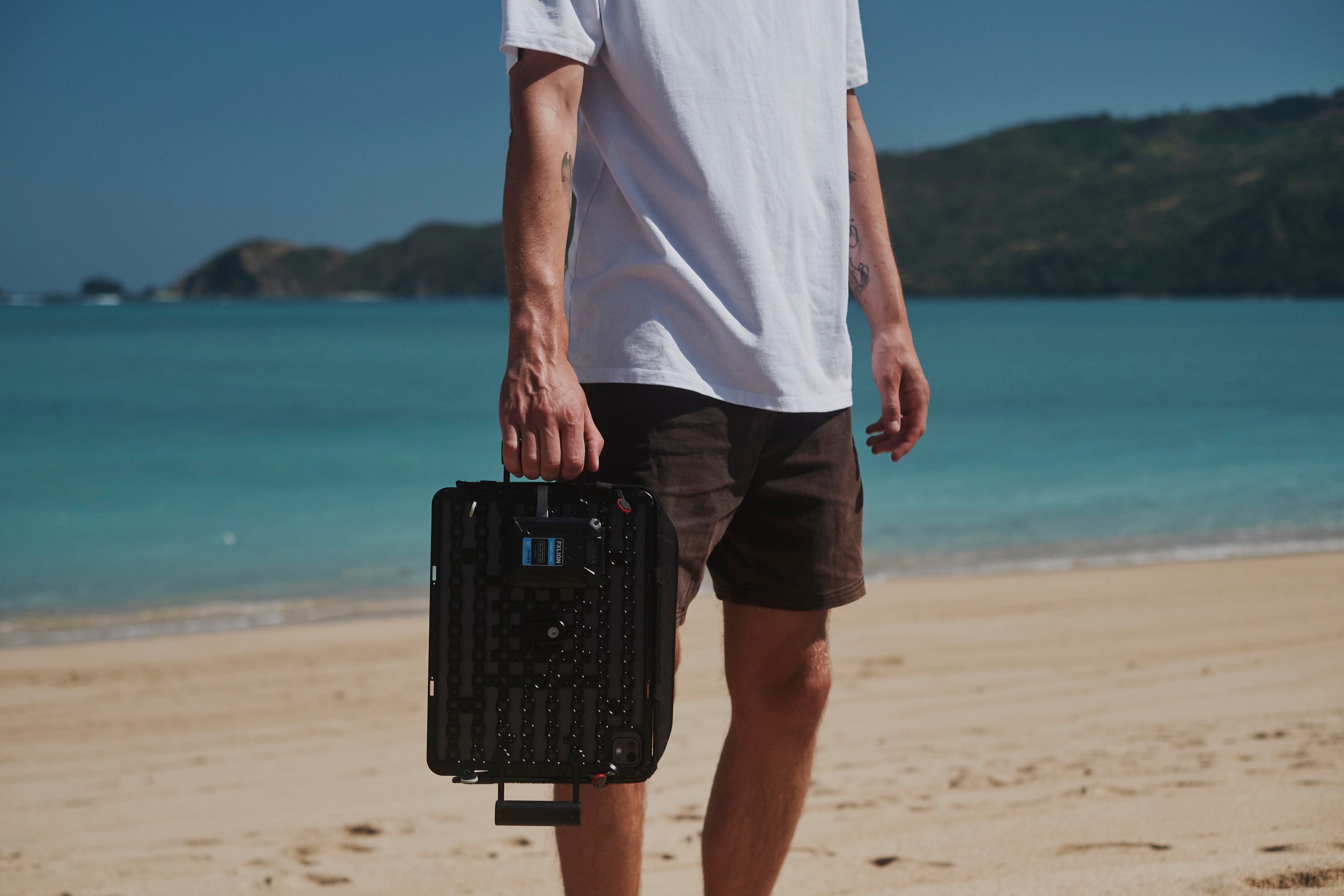

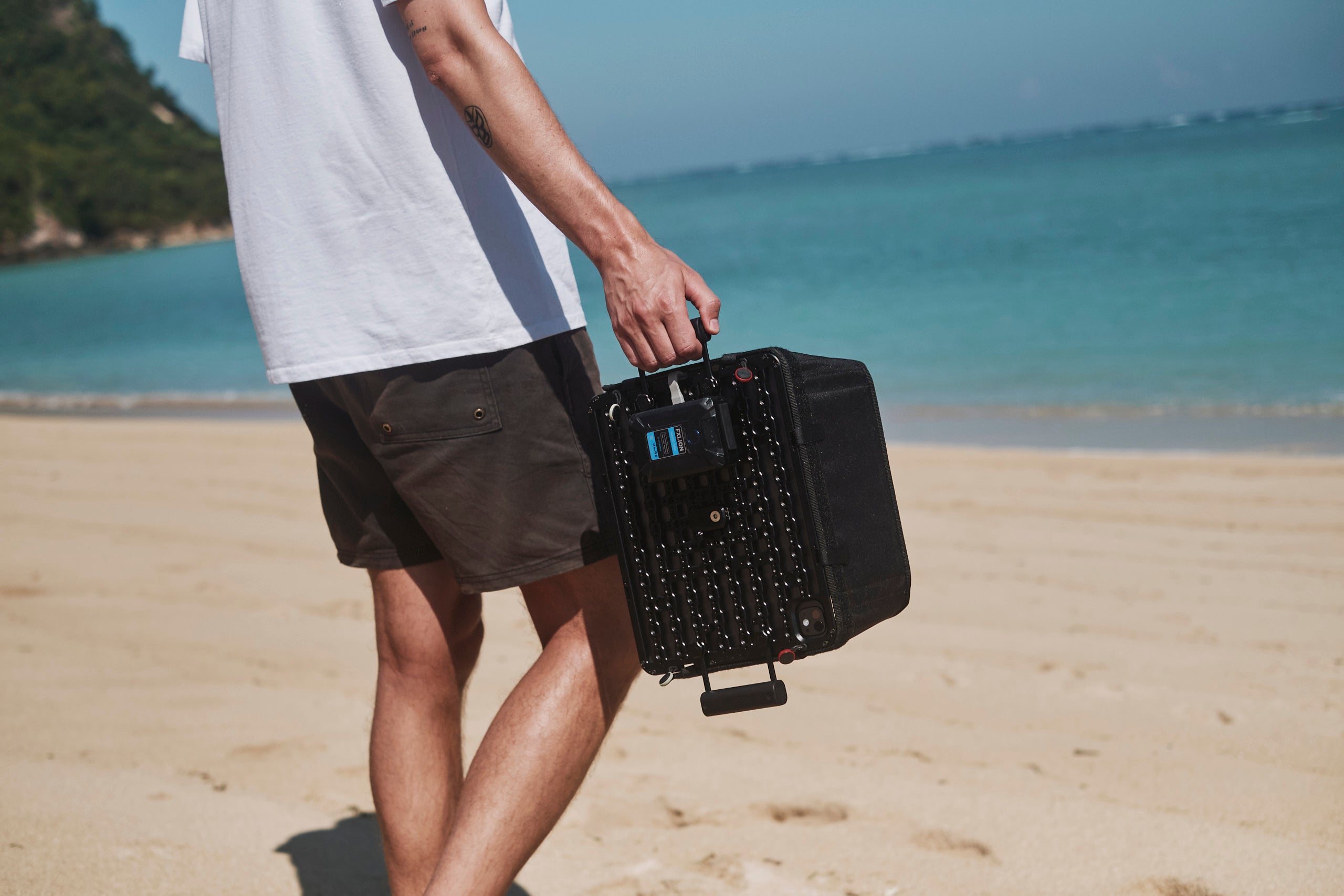

2x SLS PA12 Nylon Handles with Thumbscrews
1x Mounting Bracket Kit for selected iPad generation
2x USB C to C "U" Shape Adapter (10gbps)
